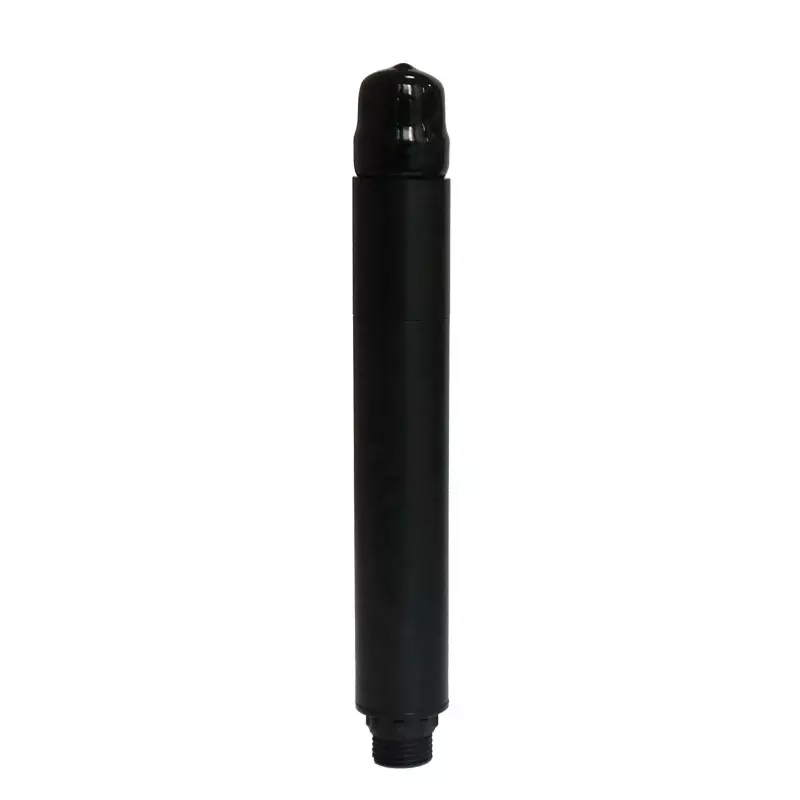

Online Digital ORP Sensor

(0 reviews)

150 USD

(231) Views

(0) Contacts

>= 1 pieces
$150.00

Contact Company

Xi’an Desun Uniwill Electronic Technology Co., Ltd

Shaanxi, China

(1070) Views

(3) Contacts

On-line digital ORP sensor, using composite electrode detection method, suitable for complicated situations, easy to maintain. The built-in temperature sensor can automatically compensate for the temperature, reduce the influence of temperature on the detection results, and still have good detection results under long-term online status.

Digital ORP sensor adopts an industrial online electrode, and the front end of the electrode is a flat structure, which is easy to clean. Built-in temperature sensor, suitable for online long-term monitoring environment. The sensor adopts RS485 output and supports Modbus, which can realize networking and system integration without a controller.

                                                            model
                                                            DS525

                                                            Accuracy
                                                            ±20mV

                                                            Range
                                                            -999~999mV

                                                            Resolution
                                                            1mV

                                                            Housing material
                                                            POM

                                                            Deepest depth
                                                            10m underwater

                                                            Probe cable length
                                                            10 meters (default), can be customized

                                                            Protection class
                                                            IP68

                                                            Operating pressure
                                                            6bar

                                                            storage temperature
                                                            0~ 60°C   -20~80 °C

                                                            Power information
                                                            DC 5 ~ 12V, current <50mA (when not cleaning)

                                                            temperature range
                                                            0~ 50°C

                                                            Sensor interface
                                                            Support RS-485, MODBUS protocol

                                                            assembly
                                                            Input

                                                            product name
                                                            Digital ORP sensor

                                                            cable length
                                                            Standard 5 meters

                                                            Detection principle
                                                            Compound electrode

                                                            Product Size
                                                            Φ25 X 198mm

                                                            Measurement range
                                                            -2000 ~ 2000mV _

                                                            Under pressure
                                                            1 bar

                                                            entry depth
                                                            <10 meters
