Water Test ORP Controller

(0 reviews)

(147) Views

(0) Contacts

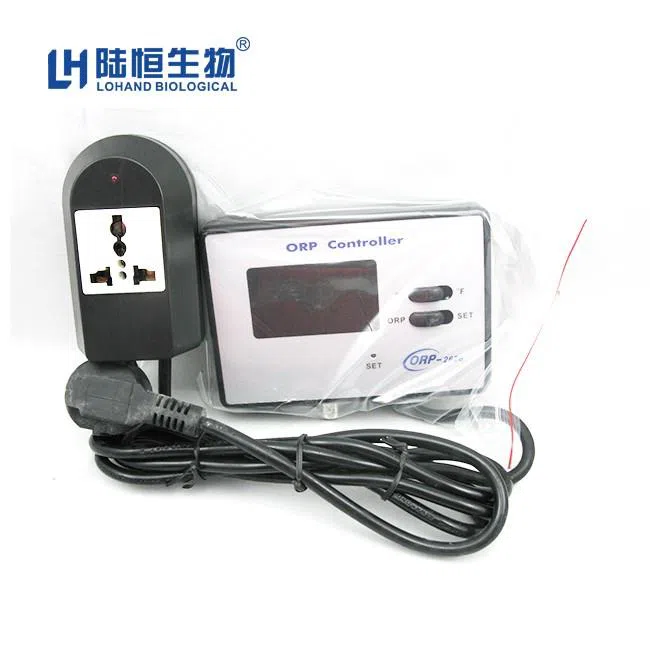

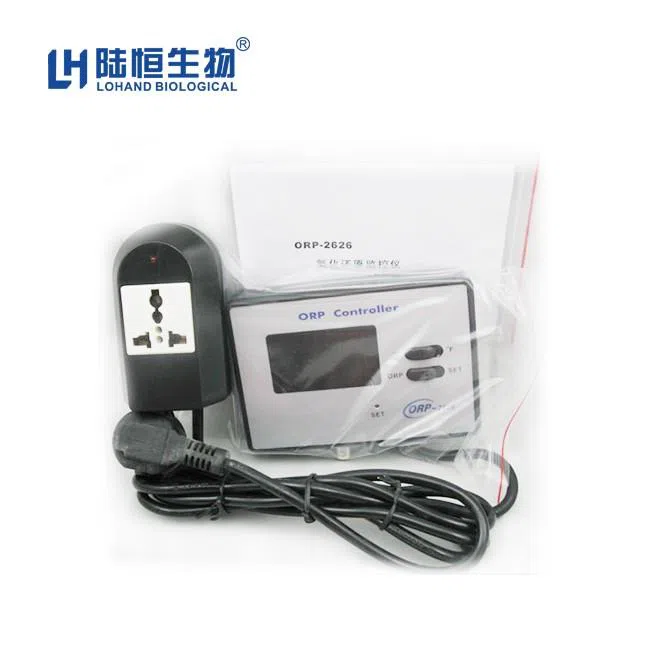

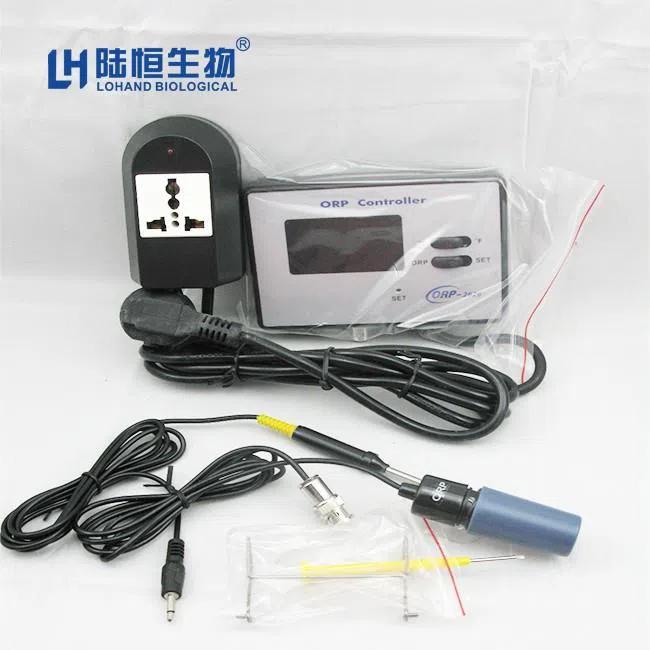

The ORP-2626 ORP water tester is an ORP mini controller that has been designed for easy, affordable installation in tight spaces, ideal for simple yet effective process control. As a result of its compact size, the ORP-2626 can be installed right next to tanks or vats.

Contact Company

Hangzhou Lohand Biological Technology Co.,Ltd

Zhejiang, China

(962) Views

(16) Contacts

This versatile controller is ideal for many applications, such as ORP monitoring bleaching processes, wastewater treatment, and swimming pools. ORP-2626 permits automatic control of installations previously checked manually. The instrument ORP water tester can be set for reducing or oxidizing dosage. It measures in the ±1999 mV range, with a 1 mV resolution. Set point adjustment and calibration are simply performed through trimmers on the front panel. The overtime control system advises users when the relay is active too long, helping to prevent over-dosage.

Items	ORP	Temperature
Measuring range	-1999~1999mV	-9.9~99.9°C(16~210°F)
Resolution	1mV	0.1°C(0.1°F(16~99°F)
		1°F (100~ 210°F))
accuracy	±5mV	±1°C(±2°F)
Calibration	1point or 2point
Set range	-500~500mV
Standard of CPS	5A/AC 250V
Power	AC230V± 10%, 50HZ±2%
Operating conditions	0~60°C, RH<95%
ATC	0~60°C
Revise	1 point
Dimension	228×163×78mm
Weight	774g
