High Quality EPDM Aeration Tubes From China

(0 reviews)

Get Price

(129) Views

(0) Contacts

>= 20 sets
$10.00

Contact Company

Hangzhou Juntai Plastic Products Co., Ltd

Hangzhou, China

(983) Views

(5) Contacts

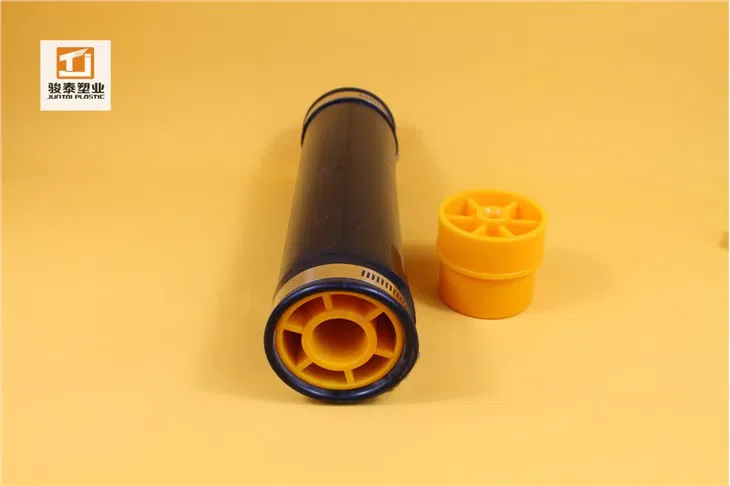

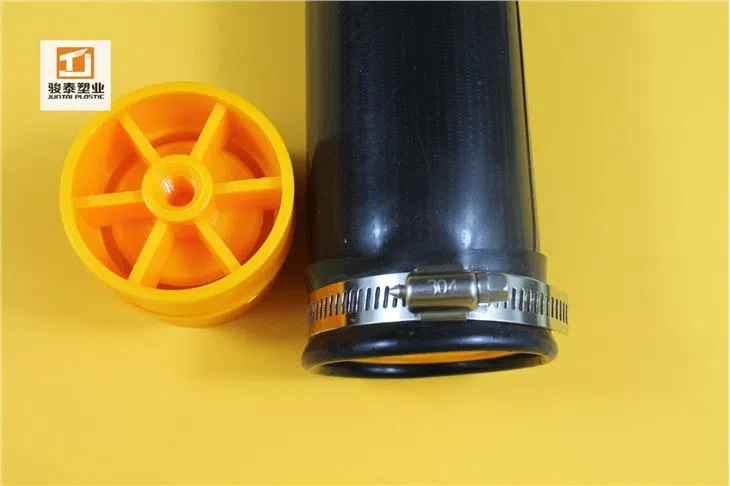

A High-Quality EPDM aeration tube From China consists of a support tube with an inside thread and slotted sleeve membrane. Two hose clamps fasten the membrane onto the support tube and an O-seal is applied for sealing between the distribution pipe and the diffuser element. To avoid buoyancy the support tube is flooded. Tube diffusers are usually installed in pairs either by a pipe clamp fixed on a round tube serving as a distribution pipe or by a double nipple inserted into a rectangular tube. When air is supplied, it is directed through the head of the support tube under the membrane. Through the slots of the membrane, the air is smoothly dispersed into the wastewater and ensures the High Quality EPDM aeration tubes From China have a good performance.

                                                            Model
                                                            TD113

                                                            Moc
                                                            Special formula EPDM

                                                            Tube
                                                            reinforced ABS(Acrylonitrile Butadiene Styrene)with UV Protector

                                                            Diameter
                                                            113mm

                                                            Length
                                                            750mm and other length

                                                            Connector
                                                            3/4NPT

                                                            Flow range（m³/h）
                                                            6-28

                                                            Bubble size(mm)
                                                            1-2

                                                            Service area:(m²)
                                                            1.5-2.5 Accept customization

1. Municipal wastewater treatment.

2. Industrial wastewater treatment.

3. Clean water treatment.

4. Sludge stabilization.

5. Wastewater ozone diffusion.

6. Aeration of fish ponds.

7, Adoration of streams and lakes

Juntai Smart Tube Diffuser Advantage

Increased dissolved oxygen DO
Declining biochemical oxygen demand BOD
Improved treatment of TSS total suspended solids
Short-notice emergency aeration and simplified treatment repair
Aeration system energy savings
Overall reduction in maintenance
