Lamella Clarifier Tube Settlers Media

(0 reviews)

(114) Views

(0) Contacts

The lamella clarifier is a new type of biological filler that is constructed of imported modified B and C copolymer grade plastics. It is pulled into a hexagonal tubular shape using infrared constant temperature mechanical heat and then thoroughly welded together. High porosity, high porosity, large specific surface area, high porosity, corrosion resistance, and aging resistance; smooth wall, easy to discharge mud, easy to wash, easy to manage, simple and rapid support, and easy to install.

Contact Company

BIOETP

Jiangsu, China

(231) Views

(0) Contacts

Working Principle Of Lamella Clarifier Tube Settlers Media
Gravity is a physical technique used in the sedimentation stage of wastewater treatment to settle and remove suspended materials. The settling capacity of a clarifier can be increased by a lamella clarifier by lowering the vertical distance that floc must travel before condensing into larger particles. Inclined tube packing The use of contiguous tubular channels that are 60° inclined to each other to increase the effective settling area.
As a result, settling time is decreased because the particle settling depth is substantially smaller than that of traditional clarifiers. Inclined tube packing permits larger flocs to enter the bottom of the tank in a more settleable state while capturing settleable fine flocs that escape from the clarification zone beneath the tube settler. The solids are gathered into a compact mass in the lamella clarifier's channels, which makes it easier for the solids to slide out of the tube channels.

Application of Lamella Clarifier Tube Settlers Media:

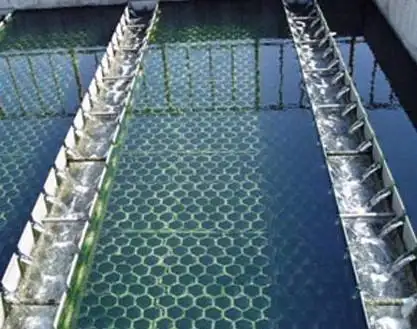

Water treatment in sedimentation tanks of water plants.The effluent water quality is good, and the sedimentation speed is quick, lowering the sedimentation time to increase water production and water purification efficiency. It is a practical method for utilizing water treatment facilities and sewage treatment projects.
Sewage treatment tanks
Accelerated sedimentation tanks
Clarification tanks.

Characteristics of Lamella Clarifier Tube Settlers Media

Why Choose for Our Lamella Clarifier Tube Packaging?

Our lamella clarifier tube fills offer an affordable option to enhance the performance of current clarifiers and sedimentation tanks in water treatment plants. By lowering the solids loading on downstream filters, they can also decrease the size of the storage tank or footprint needed for new installations or boost the efficiency of sedimentation tanks that are already in use. They are offered to fit any tank geometry in a variety of module sizes and tube lengths.
Our dip tube fills may be easily supported by simple structures, which commonly include sump supports, as they are made of lightweight PVC/PP.
To meet any tank shape, a range of module sizes and tube lengths are offered by our lamella clarifier tubes.

A different sizes and qualities to accommodate different needs.

When compared to clarifiers/settlers without inclined tube fills, inclined tube fill clarifiers/settlers operate at speeds that are 2 to 4 times as fast.
While maintaining low influent turbidity to treatment plant filters, coagulant usage can be lowered in half.
Significant water and electricity operational cost savings result from less frequent filter backwashing.
Due to the higher flow capacity, new inclined tube packing units can be made smaller.
By introducing inclined tube packing, existing water treatment facilities can enhance their flow rate.
By increasing the settling capacity and the rate at which solids are removed in the settling tank, inclined tube packing raises the permissible flow rate.
