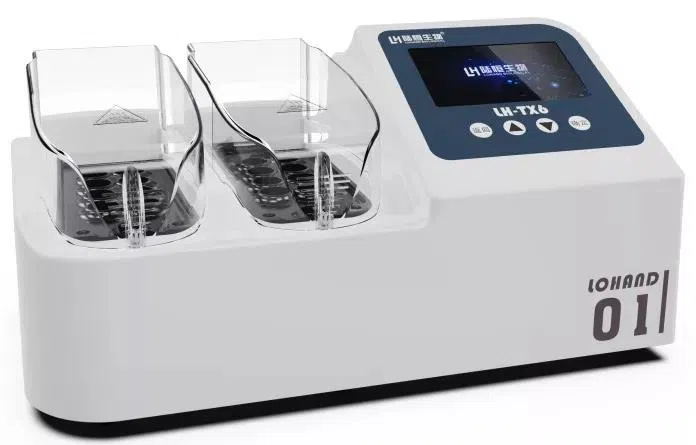

16 Vials Bench Top Reactor

(0 reviews)

(111) Views

(0) Contacts

Safety Equipment Use protective clothing when operating the reactor, including goggles or face masks, and gloves. Reagent Spills Clean up spilled reagents immediately. If the reagent contacts the skin, rinse the affected area thoroughly with water.

>= 1 pieces
$780.00

Contact Company

Hangzhou Lohand Biological Technology Co.,Ltd

Zhejiang, China

(964) Views

(16) Contacts

The instrument is strictly produced in accordance with ISO9001 2015 quality management system. And has passed the strict test before leaving the factory. LH-TX6 desktop reactor is a meter which is promoted by Lohand in 2017. This product has two temperature control regions, which can meet the needs of different operating temperatures.
Note:
Safety Equipment Use protective clothing when operating the reactor, including goggles or face masks, and gloves. Reagent Spills Clean up spilled reagents immediately. If the reagent contacts the skin, rinse the affected area thoroughly with water.

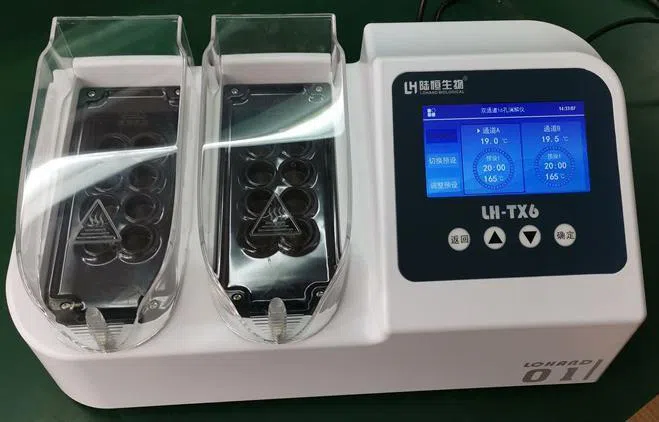

16 Vials Bench Top Reactor 3. Product details

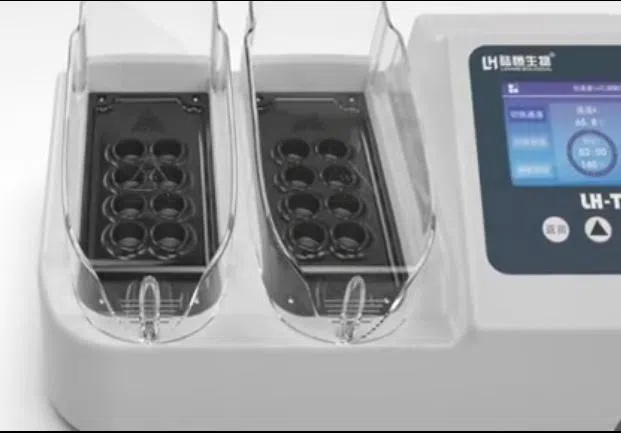

3.1 Dual Block Models， up to 16 samples can be reached at the same time.
3.2 Big screen with 4.3-inch size.
3.3 USB connector, power supply 24V/12.5A
3.4 Beautiful outlook
16 Vials Bench Top Reactor 5.About Reactor
The electric heating digestion device comprises a heating body, and the heating body is connected with the alternating current power source to form a heating circuit by heating the main circuit, and the heating main circuit comprises an air circuit breaker, a single-phase full-bridge rectifying and filtering unit and a Buck main circuit which are sequentially connected in series; The temperature sensor on the heating body, the temperature sensor is respectively connected with the single chip microcomputer and the PWM control driving unit through the filter amplifying unit, the single chip microcomputer and the PWM control driving unit, and the PWM control driving unit is connected with the Buck main circuit through the isolated driving unit; the PWM control driving unit The current in the heating circuit is sampled by the sampling resistor; the output end of the single chip is connected with an output device for displaying the temperature, and the input terminal is connected with the input device with the parameter setting.
The electrothermal digestion device uses a power switch to achieve precise adjustment of the output power, which in turn enables precise control of the heating process.

                                                            Item No.
                                                            LH-TX6

                                                            Temperature Range
                                                            45-180℃

                                                            Dimension
                                                            359x195x167mm

                                                            Weight
                                                            4KG

                                                            Accuracy
                                                            ±0.1°C (@ 25°C)

                                                            Power Supply
                                                            DC 24V/12.5A

                                                            Environment Temperature
                                                            0-60℃

                                                            Capacity
                                                            16 vials

It is widely used in the fields of electroplating, petrochemical, pelage, process hides, pharmacy, food processing, etc.

Widely used in the fields of electroplating, sewage plant, coal carbonization, paper making, petrochemical, pelage, process hides, pharmacy, food processing, etc.

Features:
Ø Two heat blocks. Dual Block Models reactor gives the operator independent control of two temperatures and durations. It can also run two programs at the same time.
Ø Up to 16 samples can be reacting at different temperatures and times same time.
Ø Dual operation, touch screen, and key can be operated separately, or switch operation at any time.
Ø Easy to operate, the reacting temperature within 45-180℃ can be set arbitrarily, the meter has an over-temperature alarm function, the reacting time within 0-120mins can be set arbitrarily, and the meter has cue words when reacting finished.
