COD sensor online

(0 reviews)

Get Price

(196) Views

(0) Contacts

1 - 4 units
$1,250.00
>= 5 units
$1,190.00

Contact Company

Xi’an Desun Uniwill Electronic Technology Co., Ltd

Shaanxi, China

(1094) Views

(3) Contacts

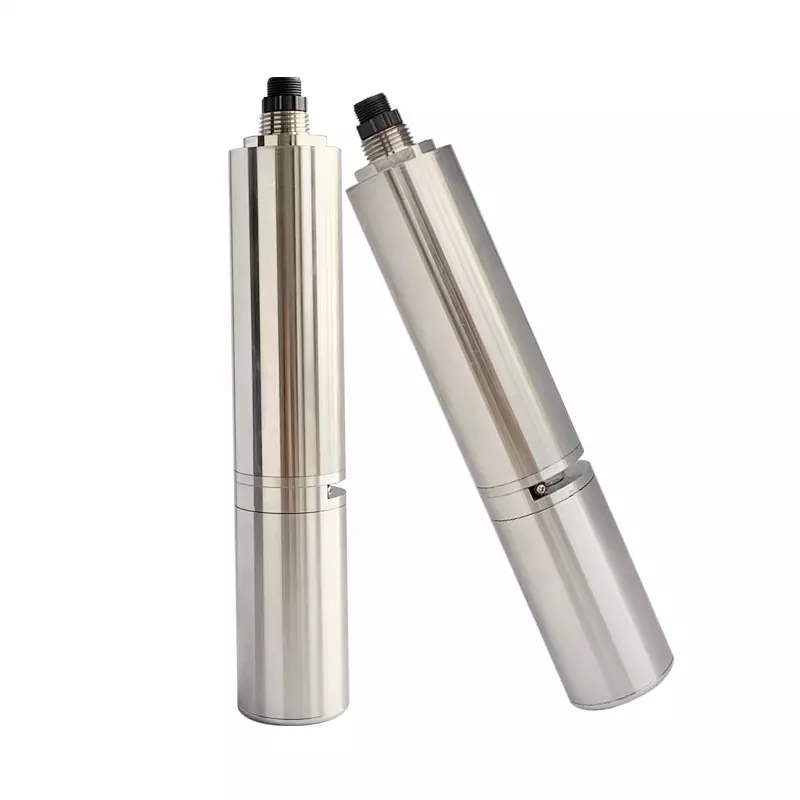

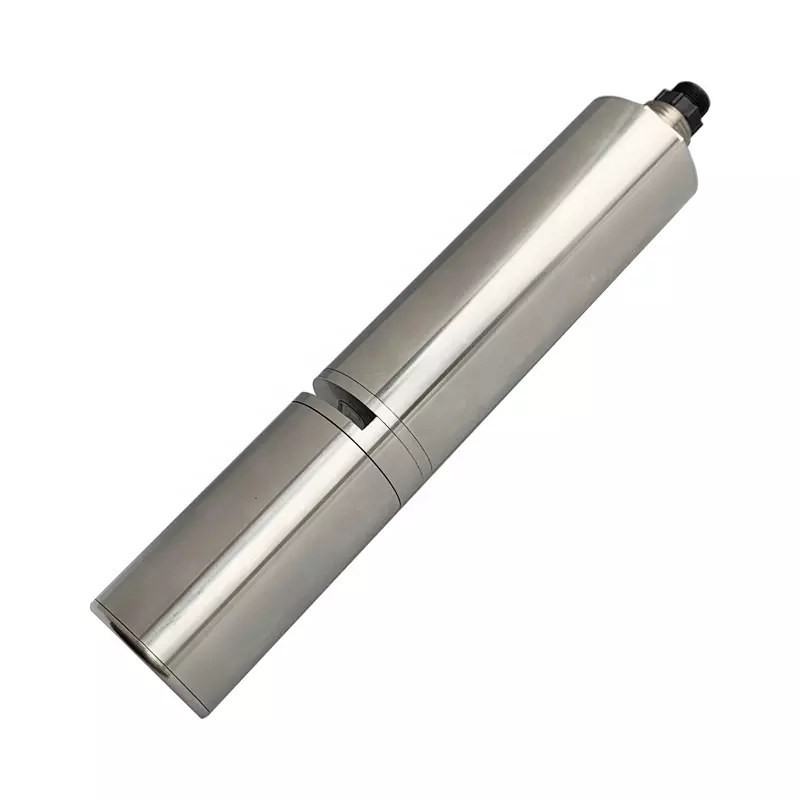

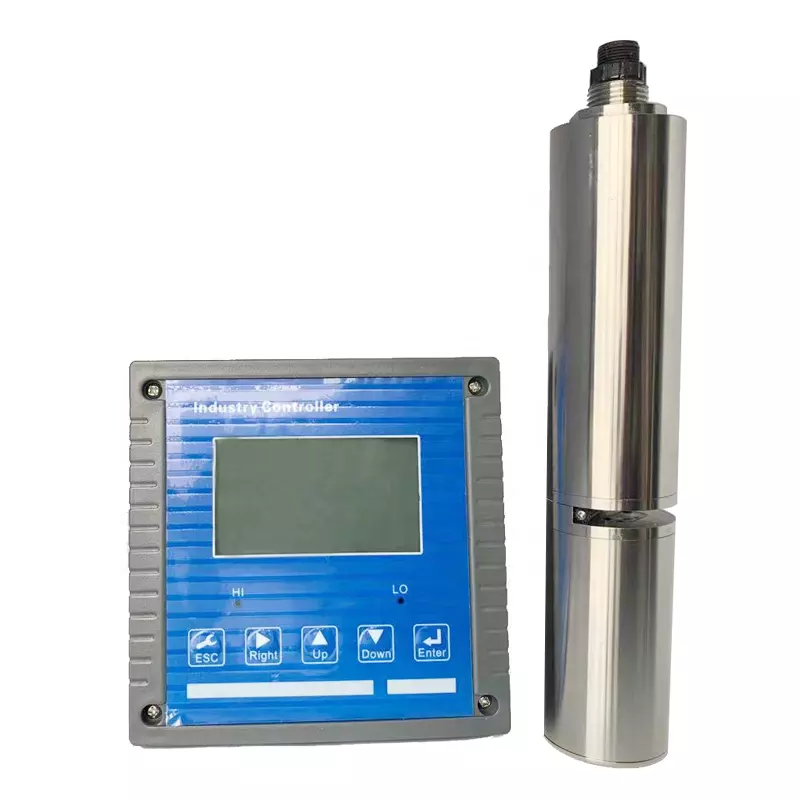

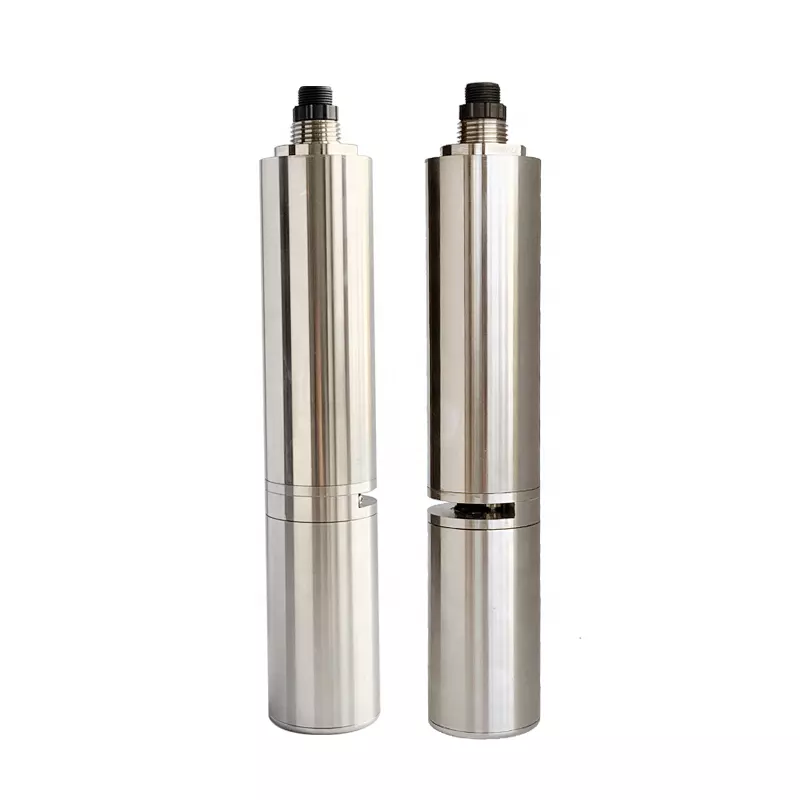

DSC500 series COD sensor is a new generation of environmentally friendly COD / TOC sensor launched by Disen Hezhi Electronics, which requires no reagents, no pollution, and is more economical and environmentally friendly. Small size, more convenient installation, and continuous water quality monitoring online. Automatically compensate for turbidity interference, with an automatic cleaning device, even with long-term monitoring, it has excellent stability.
Measurement principle:
Many organic substances dissolved in water have an effect on ultraviolet light. Therefore, the total amount of organic pollutants in water can be measured by measuring the absorption of ultraviolet light at a wavelength of 254 nm by these organic substances. The Y550 series sensor uses two light sources, one 254nm ultraviolet light and one 850nm infrared light, which can automatically compensate for the attenuation of the optical path and the influence of turbidity, thereby achieving more stable and reliable measurement values.

Technical Parameters

product name	COD sensor online
model	Measuring range	Application area
DS500（40 mm gap）	SAC 0.1 to 50 1/m COD 0.15 to 75 mg/l equiv. KHP TOC 0.06 to 30 mg/l equiv KHP	Tap water
DS501（8 mm gap）	AC 0.5 to 250 1/m COD 0.75 to 370 mg/l equiv. KHP TOC 0.3 to 150 mg/l equiv KHP	The outlet of the sewage treatment plant, natural waters
DS502（2 mm gap）	C 1.5 to 700 1/m COD 2.5 to 1000 mg/l equiv. KHP TOC 0.9 to 410 mg/l equiv KHP	Industrial process control

                                                            Product name
                                                            COD sensor

                                                            Cable length
                                                            Standard 5 meters

                                                            Power information
                                                            DC 6~12V,Current <10mA

                                                            Detection principle
                                                            UV245nm UV Optics

                                                            Measurement accuracy
                                                            ±5%

                                                            Measurement range
                                                            COD: 2.5 to 1000 mg/l equiv. KHP  TOC : 1.5 to 650 mg/l equiv KHP  SAC : 1.5 to 2000 1/m

                                                            Resolution
                                                            0.01mg/L

                                                            Optical path
                                                            1mm、6mm、10mm

                                                            Product Size
                                                            ∅46×218mm

                                                            Temperature range
                                                            0~45℃

                                                            Product material
                                                            316/POM/Titanium alloy

                                                            Stored temperature
                                                            -40~80℃

                                                            Waterproof level
                                                            IP68

                                                            Under pressure
                                                            1bar

                                                            Automatic cleaning
                                                            Built-in cleaning brush

                                                            Output signal
                                                            RS-485、MODBUS protocol

                                                            Calibration method
                                                            1 or 2 points

COD sensors are mainly used for monitoring rivers, lakes, sewage, and other types of surface water, etc., and can be easily integrated into water quality monitoring systems to meet customer needs.
Tap water
Sewage treatment
Natural waters

Digital sensor, RS-485 output, support MODBUS
No reagents, no pollution, more economical and environmentally friendly
Can measure SAC, COD, TOC, and other parameters
Automatically compensate for turbidity interference, with excellent test performance
Optical detection, high efficiency.
Automatic cleaning to reduce the impact of contaminants.
