Water Quality Monitoring System

(0 reviews)

Get Price

(118) Views

(0) Contacts

1 - 49 pieces 50 - 99 pieces >= 100 pieces
$5,599.00 $3,999.00 $1,999.00

Contact Company

Fuzhou Probest Intelligent Technology Co., Ltd.

Fujian, China

(588) Views

(3) Contacts

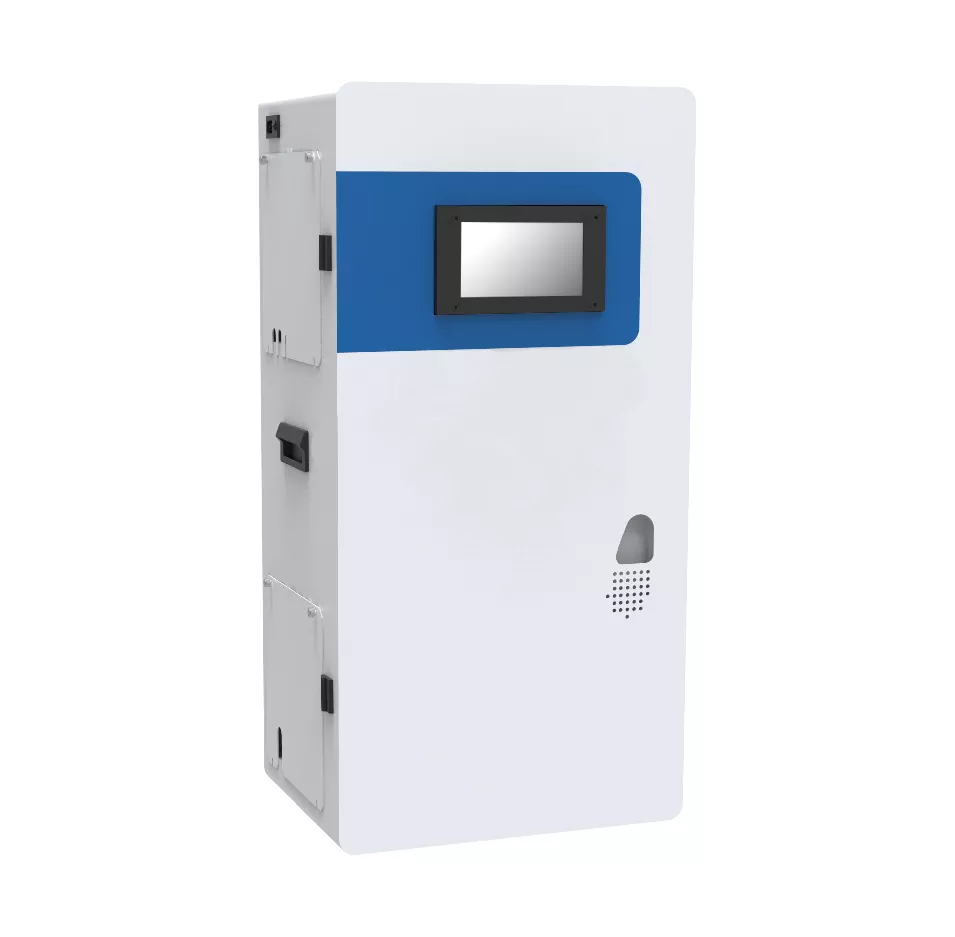

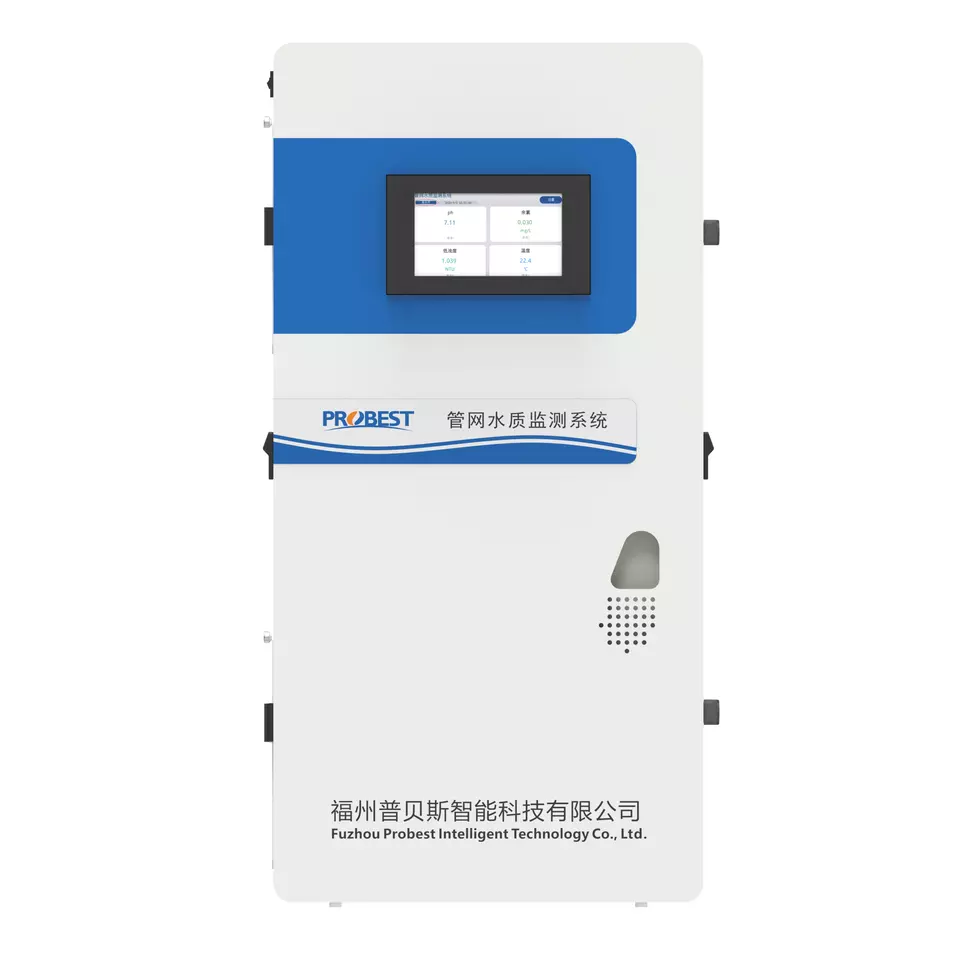

The water quality monitoring system is a system that integrates pipe network water quality monitoring sensors, data processing units, and internal water flows pipeline units. It can continuously measure temperature, PH, turbidity, and disinfectant indicators, and can extend water quality parameters such as conductivity and ORP. The disinfectant index adopts the DPD colorimetric method. The three disinfectant indexes of residual chlorine, total chlorine, and chlorine dioxide are optional. The cuvette has an automatic cleaning function, which greatly reduces the amount of maintenance and improves the stability of the measurement data. Need to purchase reagents locally. The turbidity adopts the 90 ° scattered light technology of EPA principle, adopts LED light source, low power consumption, and long life of the light source

Monitoring parameter index

Residual chlorine / total chlorine	Principle	DPD Standard colorimetry
	Range	0-5ppm
	Resolution	0.01ppm
	Accuracy	±5% reading or ± 0.03ppmCl2, whichever is greater
Carbon dioxide	Principle	DPD Standard colorimetry
	Range	0-5ppm
	Resolution	0.01ppm
	Accuracy	±5% reading or ± 0.05ppm ClO2, whichever is greater
pH	Principle	Glass electrode method
	Range	0-14 pH
	Resolution	0.01 pH
	Accuracy	±0.1 pH
ORP	Principle	Glass electrode method
	Range	-2000mV~2000mV
	Resolution	1mV
	Accuracy	±5mV
Conductivity	Principle	Conductivity cell method
	Range	10us/cm-5000 us/cm（K=1）
	Resolution	0.1uS/cm~0.01mS/cm（Depends on range）
	Accuracy	±1% or 1 us/cm， the greater than one
Turbidity	Principle	Light scattering
	Range	0-100NTU
	Resolution	0.001~0.1NTU（Depends on range）
	Accuracy	0.001-40NTU: reading ±2% or ±0.015NTU，greater one； 40-100NTU: reading ±5%
Temp	Principle	Thermistor method
	Range	0℃～80℃
	Resolution	0.1℃
	Accuracy	±0.5℃

                                                            Model
                                                            PWQ-2000

                                                            Brand
                                                            PROBEST

                                                            Display
                                                            7inch LED touch   screen, can operate in direct sunlight

                                                            Size
                                                            340×450×900mm (L × W × H)

                                                            Power
                                                            220VAC,50Hz/60 Hz

                                                            Storage   Temp.
                                                            0～60℃

                                                            Protection   Level
                                                            IP54

                                                            Operation   Temp.
                                                            0~45℃ (non-frozen)

                                                            Output
                                                            8 way 4-20mA   analog output. Program setting response parameters and response values

                                                            Relay
                                                            Four   relays, program setting response parameters and response values

                                                            Communication   Protocol
                                                            Standard MODBUS RS485 communication   function, real-time transmission of measured values.

                                                            Optional wireless
                                                            communication method: 4G: UDP / TCP NB: UDP

Water quality monitoring of waterworks and water supply network
Detection of water quality standards for secondary water supply in the community
Real-time water quality monitoring of swimming pool, SPA, etc.
Rural tap water quality monitoring

Integrated design, save space
The internal wiring and waterway are highly integrated, and users only need to connect the power supply and enter and exit the water.
The internal waterway design can try to ensure that the water flow is stable during the internal measurement process of the equipment, and ensure the monitoring data is accurate;
DPD colorimetric analyzer, with automatic cleaning function, reducing maintenance
With a 7-inch color touch screen, the operation interface is simple, easy operation, reliable system, low maintenance
With data storage and curve display functions master the dynamic changes in water quality
With automatic fault diagnosis function, abnormal information recording and uploading functions, such as parts failure, over-range alarm, over-standard alarm, and other information
With three-level management authority
Historical data download and curve display can intuitively and accurately understand and track the changes in water parameters within a certain period
Optional wireless data transmission module.
