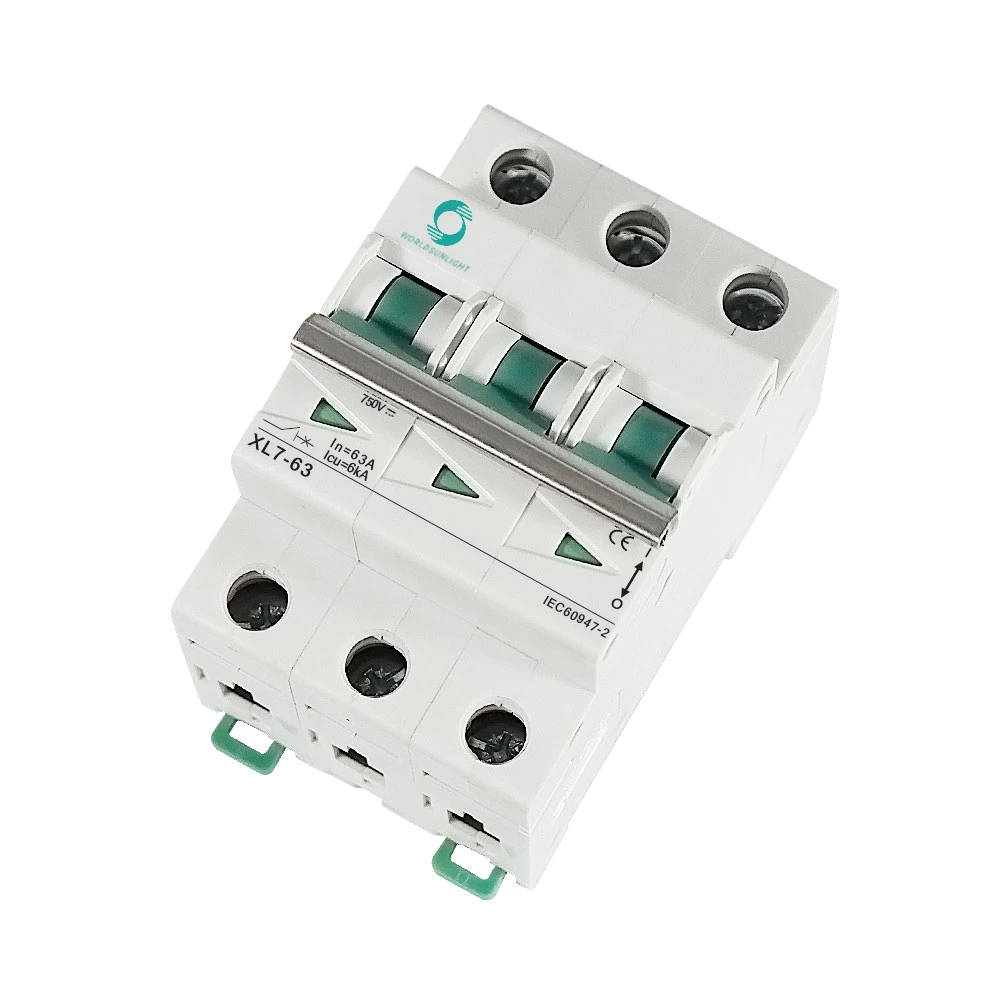

DC MCB DC Mini Circuit Breaker Miniature Circuit Breaker For Solar System CE IEC XL7-63 3P 750V 800V 900V DC 10A 16A 20A 25A 32A 40A 50A 63A

(0 reviews)

Get Price

(1204) Views

(0) Contacts

Contact Company

YueQing XiangLang Electric Co., Ltd

Zhejiang, China

(2782) Views

(2) Contacts

                                                            Item
                                                            DC MINI CIRCUIT BREAKER

                                                            Installation Altitude
                                                            ≤2000M

                                                            Code
                                                            XL7-63  Pole  1P  2P  3P  4P

                                                            Accessory
                                                            YES

                                                            Voltage
                                                            250VDC  500VDC  750VDC  1000VDC/1200VDC

                                                            Current
                                                            1-63A

                                                            Installation
                                                            35MM DIN RAIL

                                                            Standard
                                                            IEC60947-2

                                                            Breaking Capacity
                                                            6KA

                                                            Dimension(W)X(H)X(D)
                                                            18X80X71  36X80X71  54X80X71  72X80X71

                                                            Tripping curve
                                                            C curve

                                                            Working Temperature
                                                            -25℃to +40℃

                                                            Protection Degree
                                                            IP20

                                                            Quality certificate
                                                            CCC  CE

                                                            Mechanical life
                                                            With load: 10000 times;without load:20000 times

Characteristics of Mini Circuit Breaker

DC miniature circuit breakers in the XL7-63 series, rated for 63A or less, with a direct current rating voltage of up to 1200V.
It is mostly utilized in DC distribution system equipment for overloading and short circuit prevention.
It can be widely applied in a variety of fields, including electric, post, traffic, and mining.
When compared to similar products, ours has the highest grade rating voltage in China right now.
