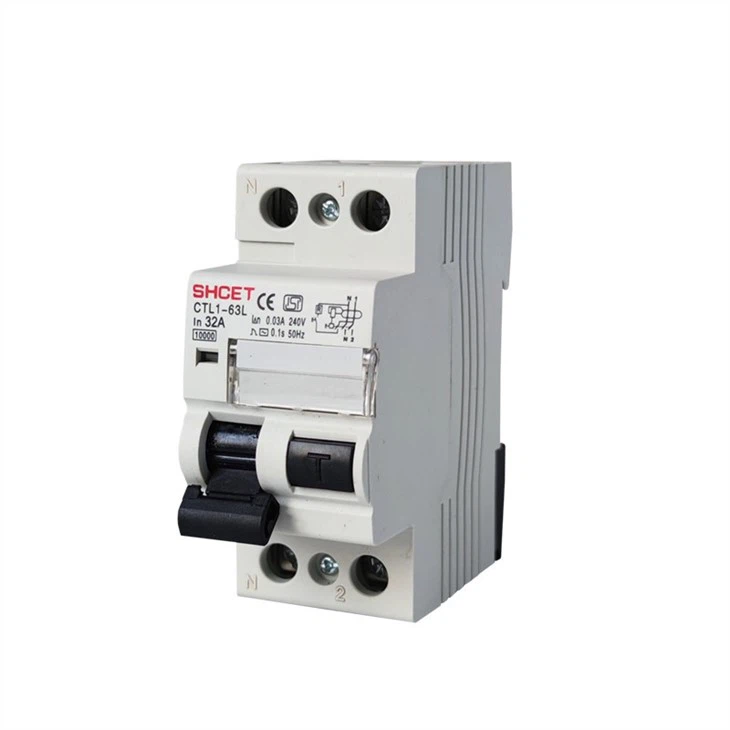

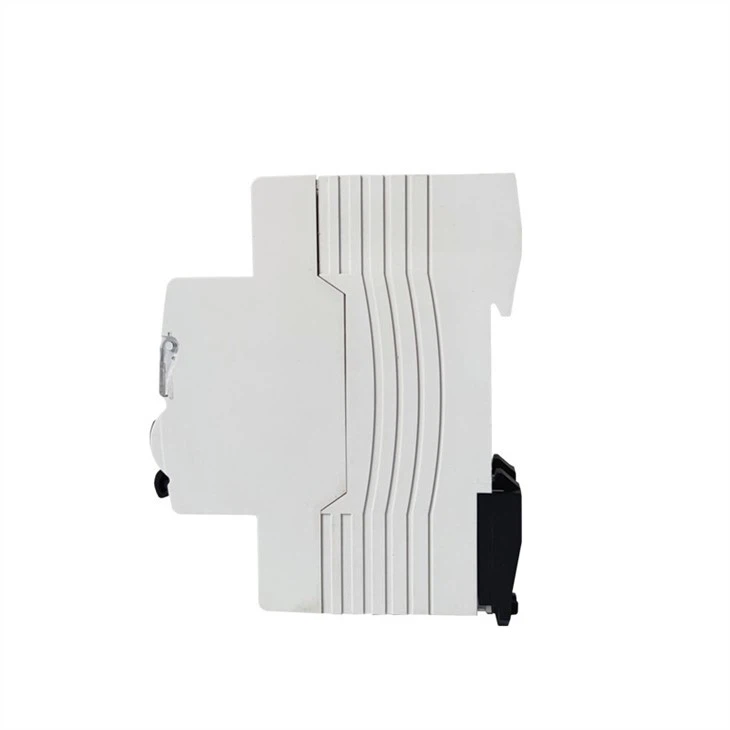

CTL1-63L 10KA Residual Current Circuit Breaker

(0 reviews)

(58) Views

(0) Contacts

The Residual Current Circuit Breaker (RCCB) CTL1 series may pass the 6KA and 10KA tests. It has a complete range: 2P and 4P with 16A, 20A, 25A, 32A, 40A, 50A, and 63A. It complies with the IEC61009 standard and has an ISI accreditation.

Contact Company

Shanghai Cet Electric Co., Ltd

Shanghai, China

(375) Views

(0) Contacts

Requirements for Normal Operation and Mounting

Temperature range: -5°C to +40°C, with an average temperature not exceeding 35°C.
Less than 2000 meters above sea level.
Humidity should not exceed 50% at 40°C and 90% at 25°C.
Class II or III installation.
Pollution level II.
DIN Rail mounting type installation procedure.
The external magnetism shall not be greater than 5 times that of the terrestrial magnetic.
The product must be mounted vertically in an area free of severe impact and vibration. When the handle is in the upper position, the product turns on.

                                                            Model
                                                            CTL1-63

                                                            Storage Temperature  ℃
                                                            -25 - +70

                                                            Type (waveform of the earth leakage sensed)
                                                            AC

                                                            Rated Current  A
                                                            16A, 20A, 25A, 32A, 40A, 50A, 63A

                                                            Number Of Poles  P
                                                            2P, 4P

                                                            Protection Degree
                                                            IP20

                                                            Rated Voltage Ue  V
                                                            240V 415V

                                                            Mechanical Life  t
                                                            ≥20000 operations

                                                            Rated Sensitivity  mA
                                                            30, 100, 300

                                                            Rated Frequency  Hz
                                                            50/60

                                                            Rated Breaking Capacity  A
                                                            4500A; 6000A; 10000A

                                                            Residual Current Off-time  S
                                                            ≤0.3

                                                            Electrical Life  t
                                                            ≥10000 operations

                                                            Rated Impulse Withstand Voltage (1.2/50) Uimp  V
                                                            4000
