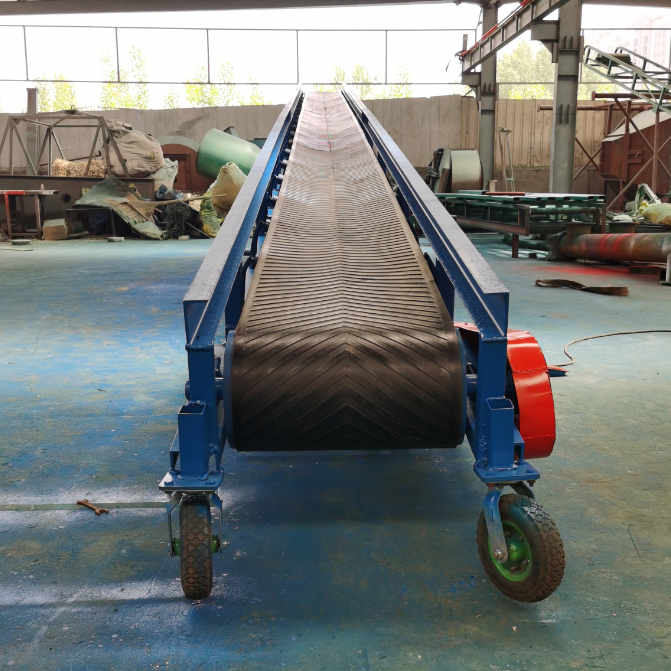

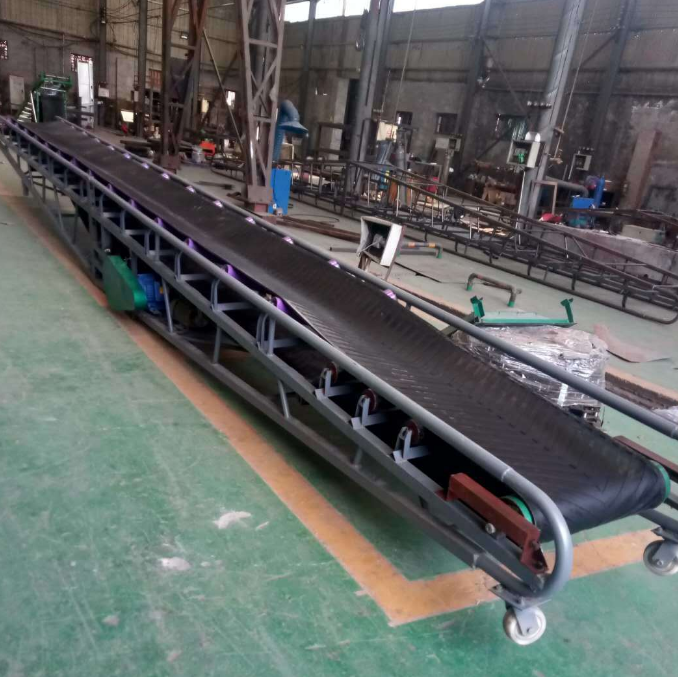

Belt Conveyor

(0 reviews)

(181) Views

(0) Contacts

The belt conveyor works well in departments that deal with chemicals, metallurgy, coal mining, water and electricity, and building materials.

Contact Company

Wuxi Zhaolie Environmental Protection Technology Co., Ltd

Jiangsu, China

(609) Views

(0) Contacts

Fundamentals of Work
The apparatus is of the continuous trough belt variety. The material falls from the grid or the dehydrator's discharge port onto the conveyor belt. The material is moved from one end to the other by the electric drum, and one end is attached to the garbage can. Another end then handles

Data Sheet

Type		ZLBC-500	ZLBC-650	ZLBC-800	ZLBC-1000
Belt width		500	650	800	1000
Capacity (m³/h)	0°	25	32	50	75
	10°	22.5	28.8	45	67.5
	15°	18.75	24	37.5	56.25
	20°	15.0	19.2	30	45
Speed (m/s)		0.6-1.0
Power (kW)		0.75-22.0 (determined by conveying length)
Electric Roller Diameter (mm)		220/240/315/400/500 (determined by conveying length)

Field of Application of Belt Conveyor
1. Transportation of Sludge in WWTPs
Stainless steel belts are resistant to corrosion from sludge that has been conditioned with polymers.
Cleaning nozzles adhere to hygienic standards by preventing material accumulation.
2. Systems for Chemical Feeding
A closed design prevents leaks and dust.
Feed rates are controlled by precision weigh belts with an accuracy of ±2%.
3. Handling Grit and Screenings
Heavy-duty scrapers are used to remove sticky materials like plastics and rags.
Up to 30° of inclination is possible for small plant arrangements.
4. Incineration Plants for Sludge
Belts with fireproof coatings that can withstand temperatures of up to 150°C.
Motors resistant to explosions for biosolid dust environments.

Features of the Belt Conveyor

Continuous conveying, multi-point material pickup, long conveying distance, high conveying capacity, and dependable equipment operation, among other features.
The driving device has an oil-cooled electric drum, IP55 protection, a small footprint, a compact design, and is simple to maintain.
To guarantee the safe, dependable, and efficient operation of the conveyor belt, the apparatus uses a helical tensioning device.
The conveyor belt's butadiene rubber is made using the vulcanization process, which is easy to clean, resistant to corrosion, and has a long lifespan.
