Shaftless Screw Conveyor

(0 reviews)

Get Price

(77) Views

(0) Contacts

Contact Company

Aquasystems International N.V. SFA enviro

Halle, Belgium

(1527) Views

(15) Contacts

The shaftless screw conveyors Enviroscrew are designed for transferring difficult and nonhomogeneous products. They are commonly used in sewage treatment plants at different places but also in many industrial applications such as the food industry for example.

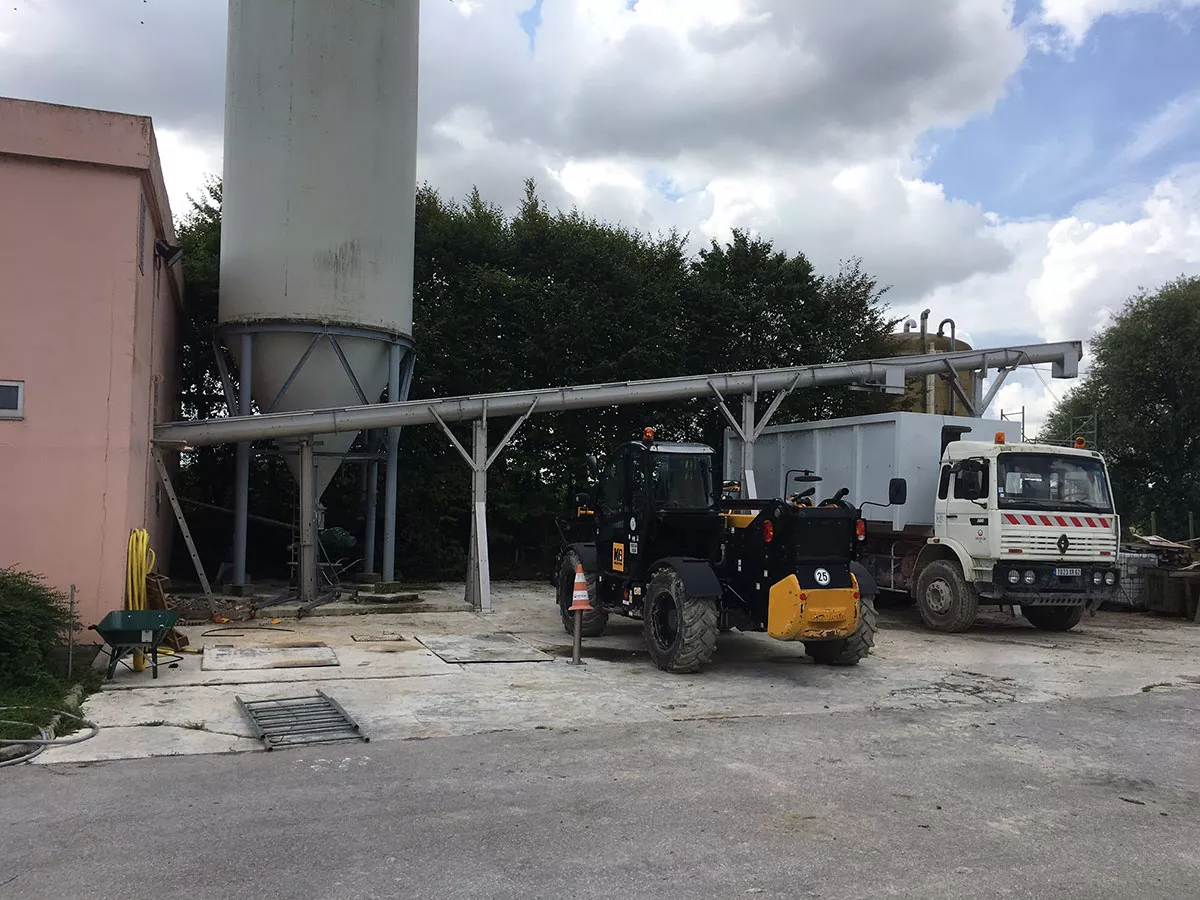

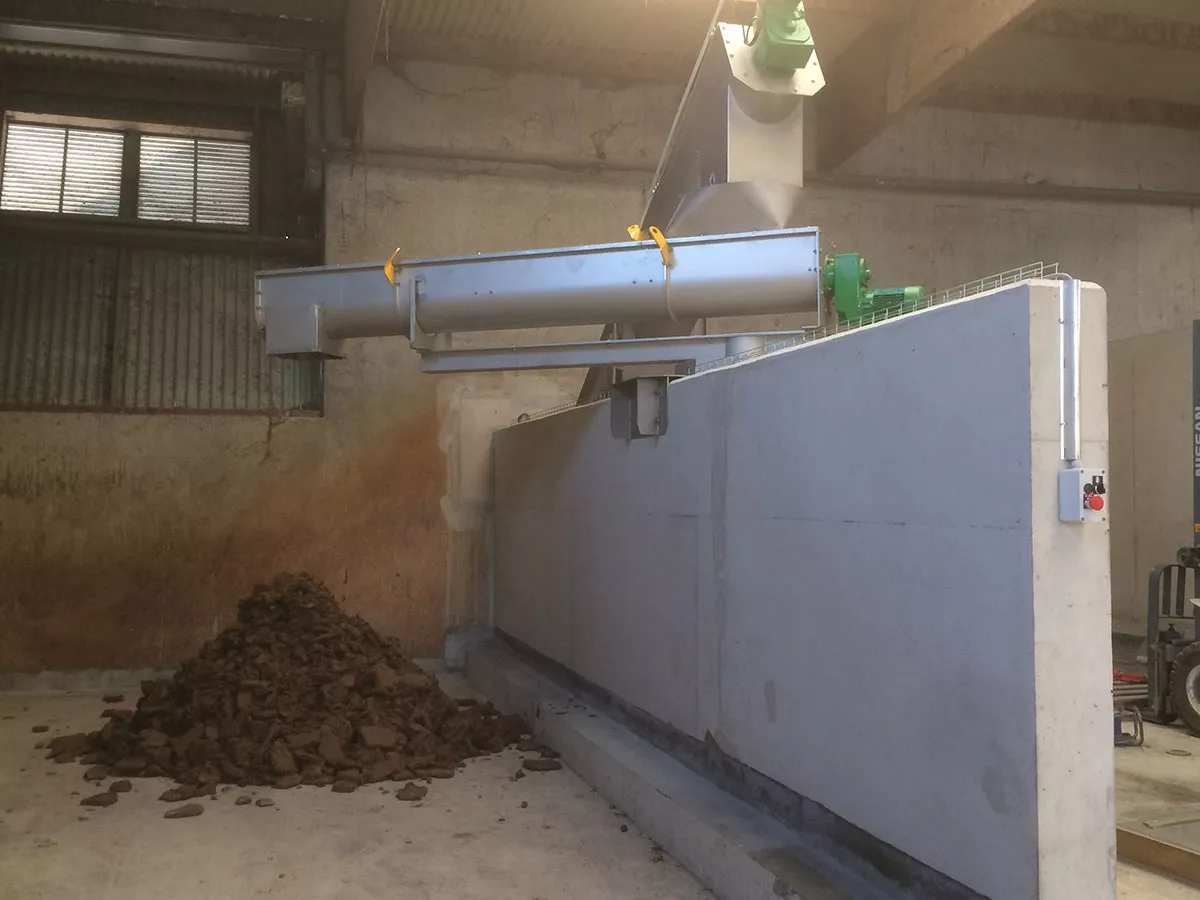

Solid waste can be discharged into a container or conditioned beforehand in a continuous plastic bagging unit. The shaftless design allows for overcoming most of the conveying constraints in relation to difficult products. Such technology gives the possibility to manufacture conveyors in one piece up to 30 meters.

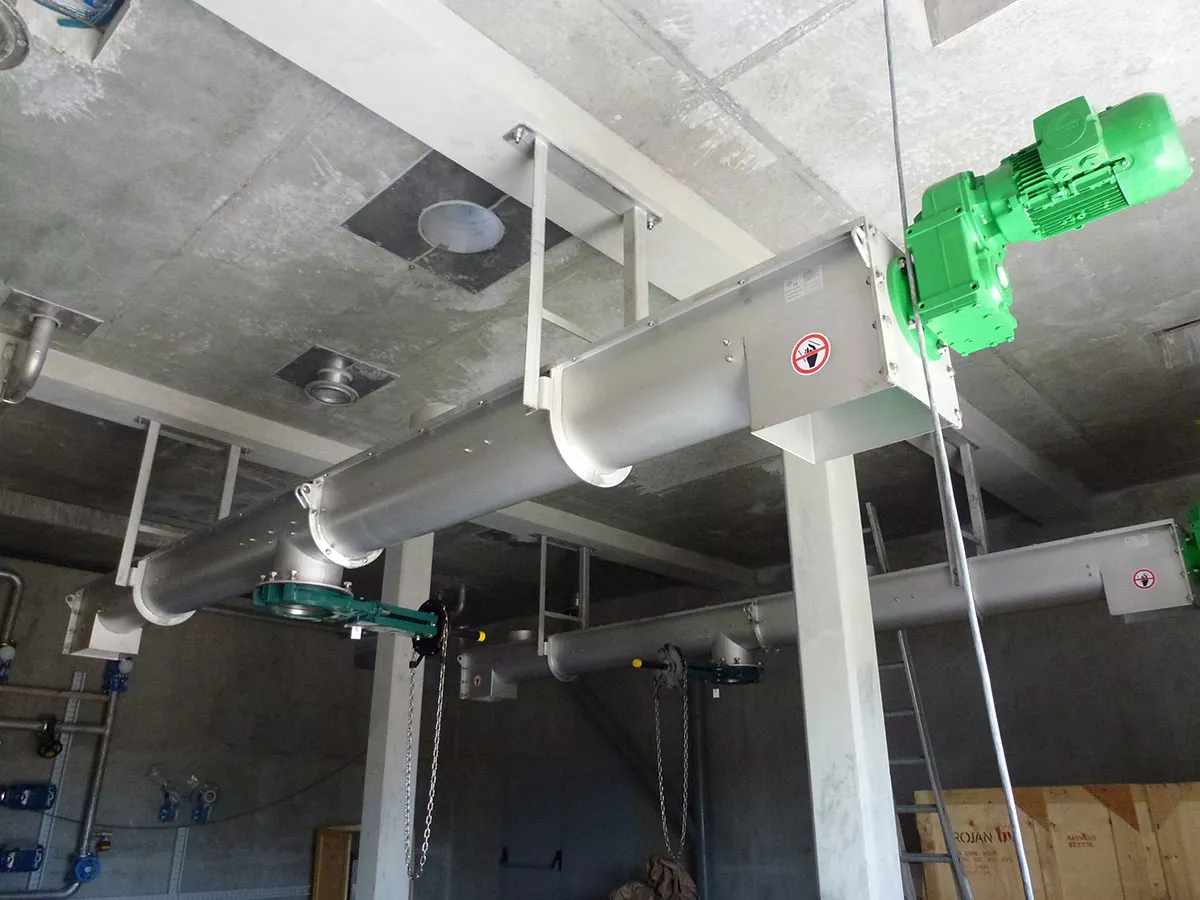

The shaftless screw conveyors Enviroscrew may be installed vertically. Such configuration opens possibilities to transfer products to further treatments positioned on upper floors or to reach a higher level in confined areas.
LAYOUTS Of Screw Conveyor

Covers
Shaftless screw
Product inlet
Product outlet
Trough diameter

TROUGH
The shaftless screw conveyors Enviroscrew include a closed trough with a «U» shape insuring CIP (Clean In Place) conditions with odors limitation.
SCREW
The shaftless screw is manufactured in special hardened steel and lay on PEHD protection. The rotation speed is set according to each application. The screw is maintained in its axis thanks to the trough shape.
OUTLETS
The design of the outlet is adapted to each site configuration. Multiple outlets can be included in the same conveyor.
MATERIALS Of Screw Conveyor

Construction in stainless steel304L or 316L
Screw in special steel high resistance

SPECIFICITIES Of Screw Conveyor

Closed system
No clogging situation
Modularity
Easy maintenance
Low maintenance costs
Reliability and durability
