Stainless Steel Screw Auger Conveyor, Industrial Spiral Screw Conveyors System

1 - 9 sets >= 10 sets
$4,000.00 $1,000.00

Contact Company

Jiangsu Longdai Environmental Technology Co., Ltd.

Jiangsu, China

(606) Views

(5) Contacts

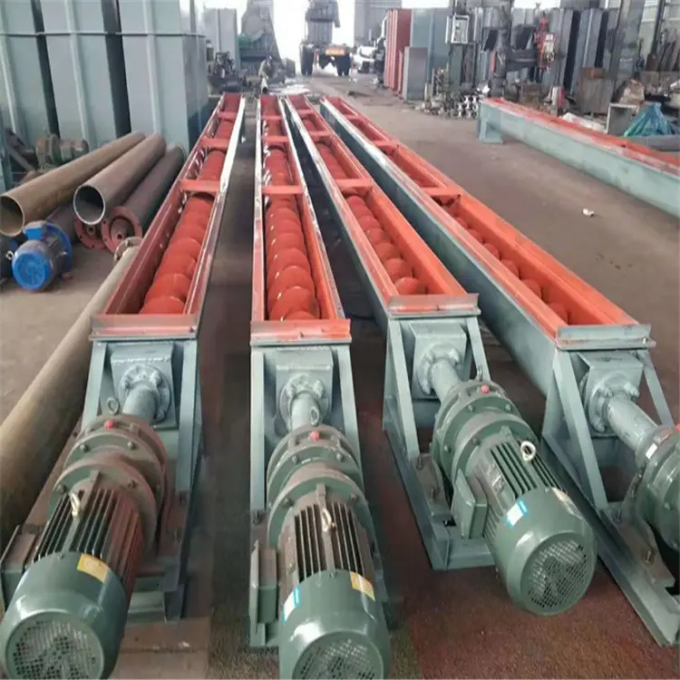

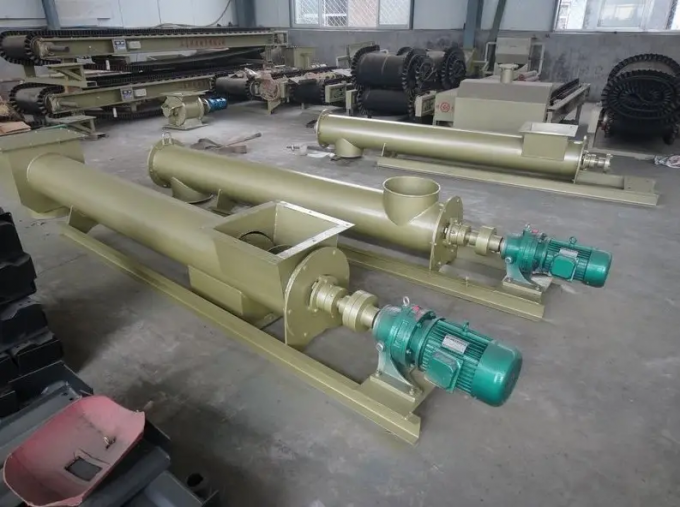

Stainless Steel Screw Auger Conveyor Manufacturers Industrial Spiral Screw Conveyors System
As general-purpose equipment that can be continuously conveyed, belt conveyors are widely used in industrial production. They can transport bulk and loose granular materials, and can also be used to transport finished items such as bagged cement. It is a common conveying equipment. It has the advantages of high efficiency, long transportation distance, low power consumption, simple structure, stable and reliable work, convenient operation, and low noise pollution. It is usually used in mining, crushing, packaging, feeding, metering, stacking, and reclaiming.
Working Principle of Screw Conveyor
The equipment adopts a screw type. When the material enters the hopper of the conveyor, the material is pushed and slid by the rotation of the spiral blade and sent to the discharge port along the U-shaped conveying groove, and is matched with the press or garbage trolley to carry the material for next processing. China Easy Operation LS-W Type Double Shaftless Screw Belt Conveyor Waster Water Treatment Color Optional Durable Screw
This type screw conveyor is suitable for Bar Screen slag treatment in urban sewage treatment plants, sewage pretreatment devices in residential communities, municipal rain/sewage pumping stations, and water plants. It is mainly used in conjunction with grids or dehydrators and other equipment. Bar screen slag or dewatered sludge is transported.

                                                            Brand
                                                            Longdai

                                                            Material
                                                            SUS304/Carbon Steel

                                                            Size
                                                            Customized

                                                            Processing Capacity
                                                            2.0m³/h-3.6m³/h

                                                            Conveyor Type
                                                            Automatic Conveyor Line

Conveying

Main Features of Screw Conveyor
1. The drive device adopts a shaft-mounted parallel shaft helical gear reducer, which has a compact structure and a stable and safe operation.
2. The conveying direction is determined by the spiral direction of the spiral blade and the rotation direction of the motor, and it can realize bidirectional conveying.
3. The U-shaped groove is equipped with an inner lining, which has strong wear resistance, long service life, and easy replacement.
4. The conveyor frame is fixed by expansion bolts, no embedded parts are needed.
5. The equipment can be linked to the supporting equipment for convenient control, and it can also be equipped with an on-site control box by itself.
