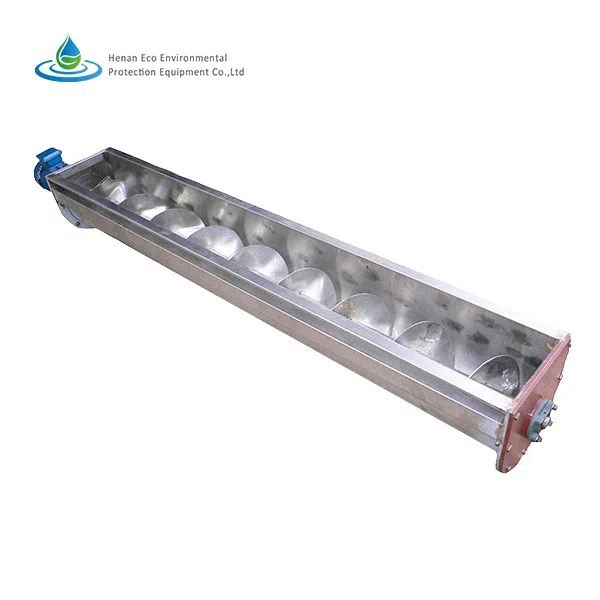

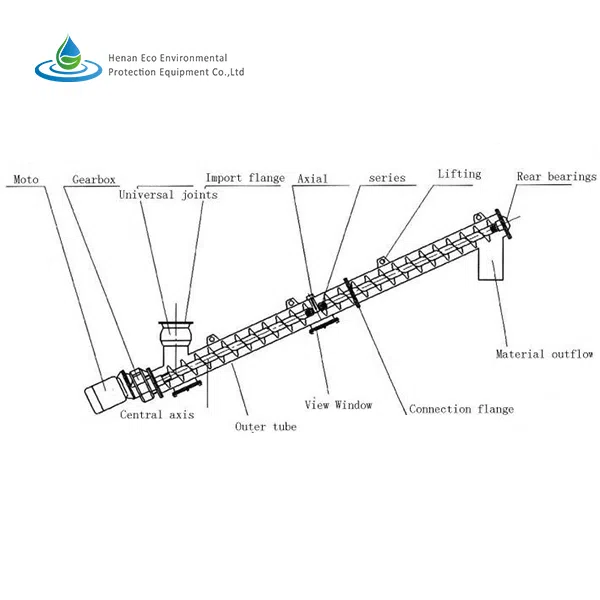

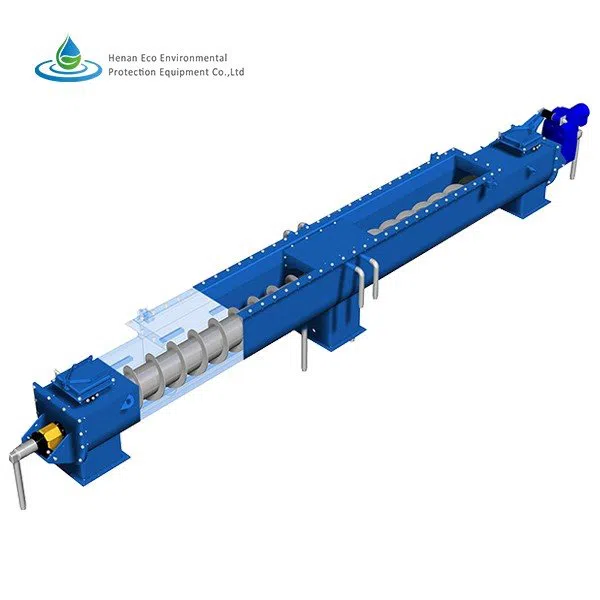

LK-WSL Screw conveyor is composed of a shaftless screw, U-shaped groove, lining plate, cover plate, inlet & outlet port, and driving motor. The material is fed from the inlet, and output from the outlet after being pushed out by the screw.

Parameters

Model	capacity(m3/h) at 20rpm			Size(mm)							power	Delivery distance(m)	Mounting Angle
Model	0°	15°	30°	A	B	H	L1	L2	L3	B1	power	Delivery distance(m)	Mounting Angle
line speed	1.5	1.3	1.0	200	310	210	100	150	350	220	0.55-1.5	≤20	≤30°
power	2.2	1.4	1.0	260	370	270	150	200	350	280	0.75-1.5
L	4.4	3.3	2.2	320	430	340	200	250	400	350	1.1-2.2
H	8.3	5.8	3.3	355	465	380	250	280	450	400	1.5-3.0
C	12.8	9.5	5.8	420	530	430	250	280	500	400	2.2-4.0
B	20.0	14.5	9.0	500	590	510	300	280	800	520	4.0-15

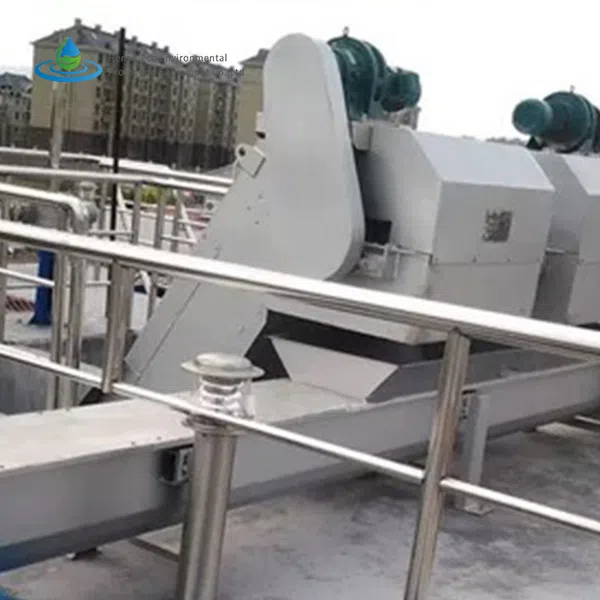

LK-WSL Screw conveyor is used for conveying and pressing residues and sludge cakes produced by mechanical screen or dewatering machines in sewage treatment plants.

Simple structure, shaftless, smooth conveying, and easy maintenance.
Full covered except for the inlet and outlet port, with no leakage, and less odor released.
