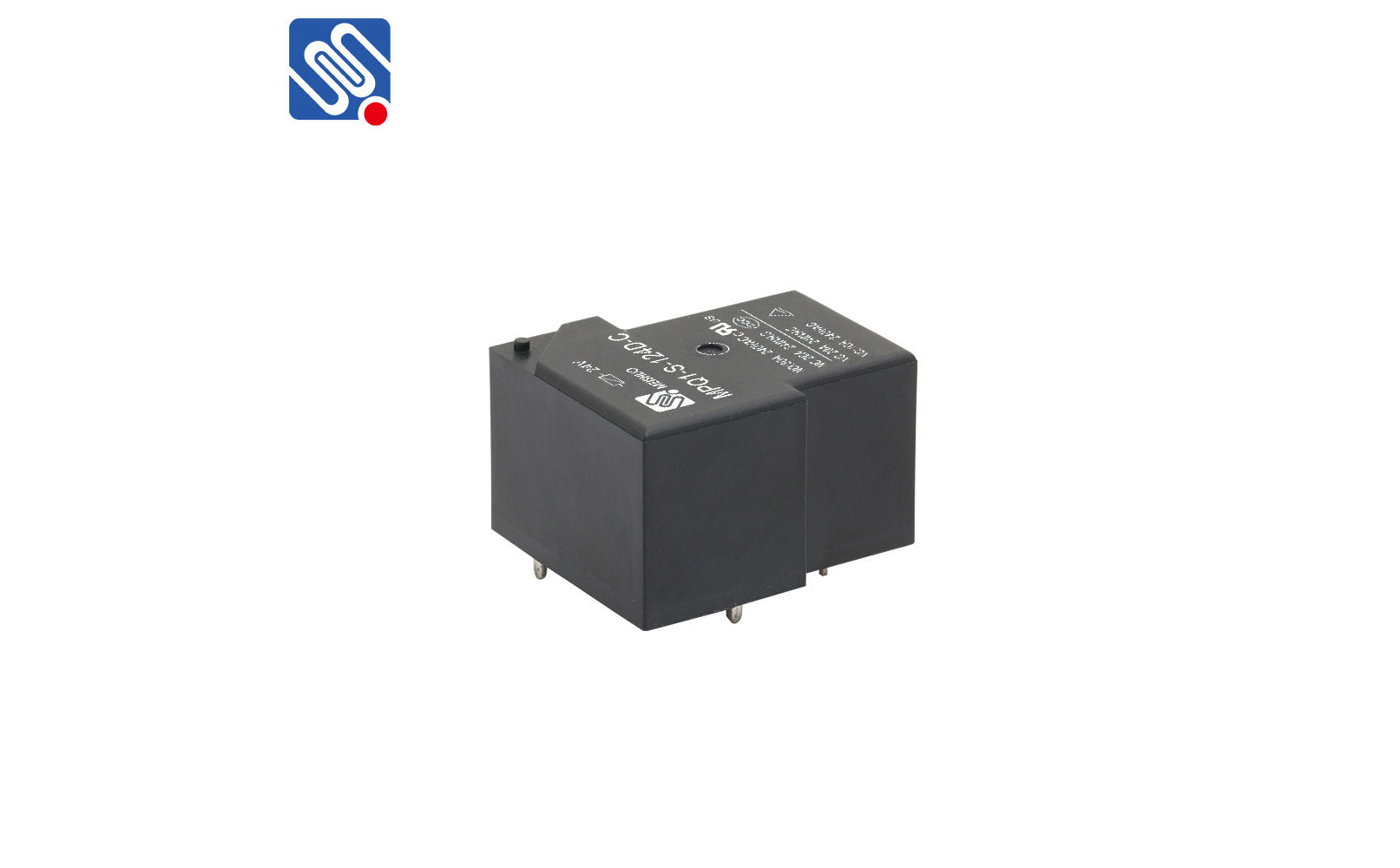

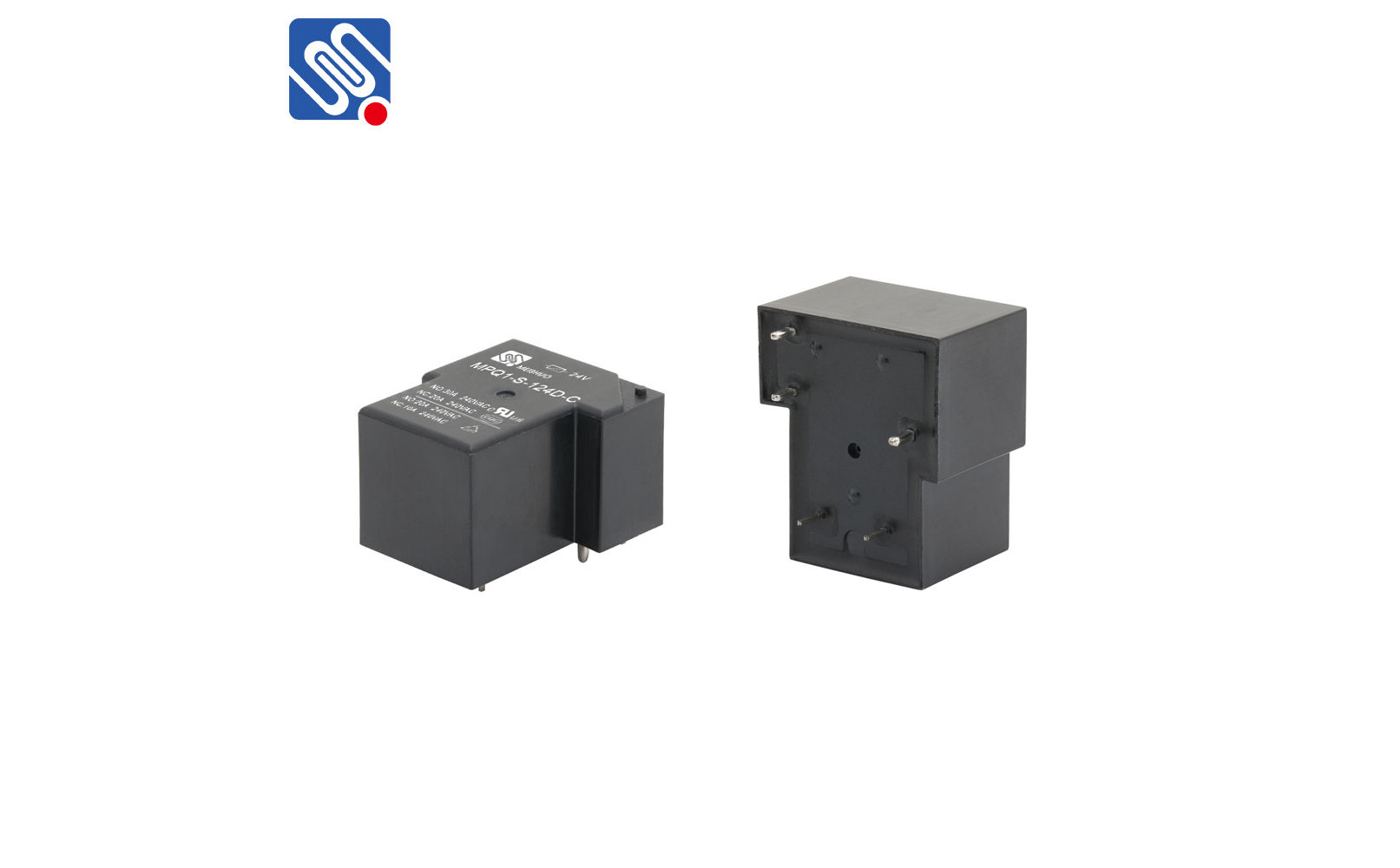

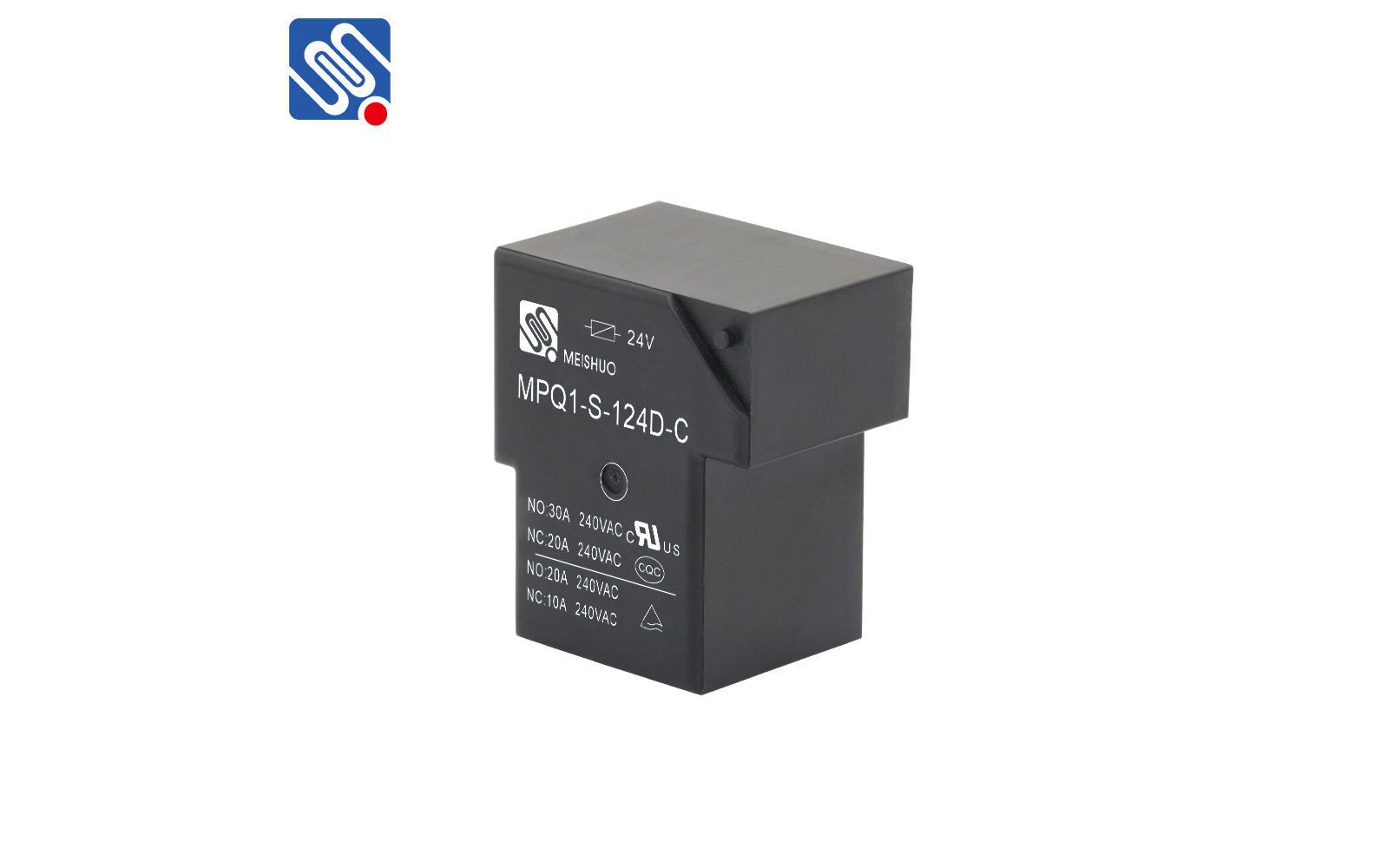

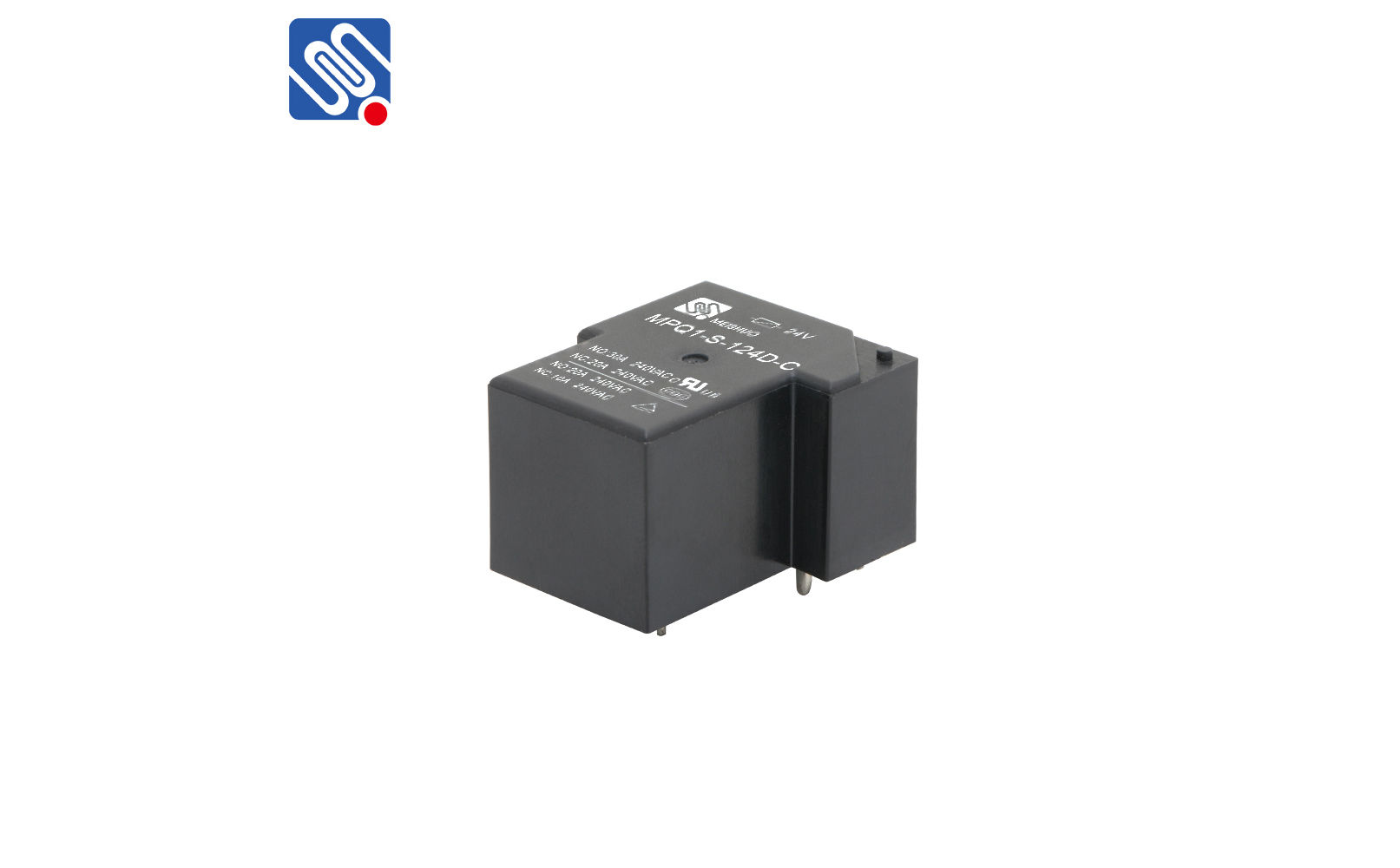

24 VOLT SWITCHING RELAY MPQ1-S-124D-C

(0 reviews)

Get Price

(140) Views

(0) Contacts

2 - 499 pieces 500 - 5999 pieces >= 6000 pieces
$0.90 $0.72 $0.64

Contact Company

Yueqing Meishuo Import And Export Co., Ltd.

Zhejiang, China

(711) Views

(0) Contacts

24-volt switching relay MPQ1-S-124D-C is a sealed 5pin 30A mini power relay, suitable for water heaters, electric cookers, washing machines, and electric kettles.

PARAMETER

Contact Arrangement:1C,Change-over type
Contact material:AgNi,AgSnO2
Contact rating:10A/20A 20A/30A
Coil voltage: 24VDC
Electrical lift:100,000 cycles
Mechanical Life: 1,000,000 cycles

                                                            Voltage   (VDC)
                                                            24

                                                            Operate Voltage  (VDC)
                                                            ≤18

                                                            Release Voltage    (VDC)
                                                            ≥2.4

                                                            Max Allowable coil voltage (VDC)
                                                            31.2

                                                            Coil Resistanc  e (Ω±10%)
                                                            640

                                                            Coil Power  (W)
                                                            Approx. 0.9

Air conditioners
Electric cookers
Water heaters
UPS
Microwave oven, etc.
Washing machines
