12V RELAY SWITCH MPQ4-S-112D-A

(0 reviews)

Get Price

(122) Views

(0) Contacts

2 - 499 pieces 500 - 5999 pieces >= 6000 pieces
$0.90 $0.72 $0.64

Contact Company

Yueqing Meishuo Import And Export Co., Ltd.

Zhejiang, China

(711) Views

(0) Contacts

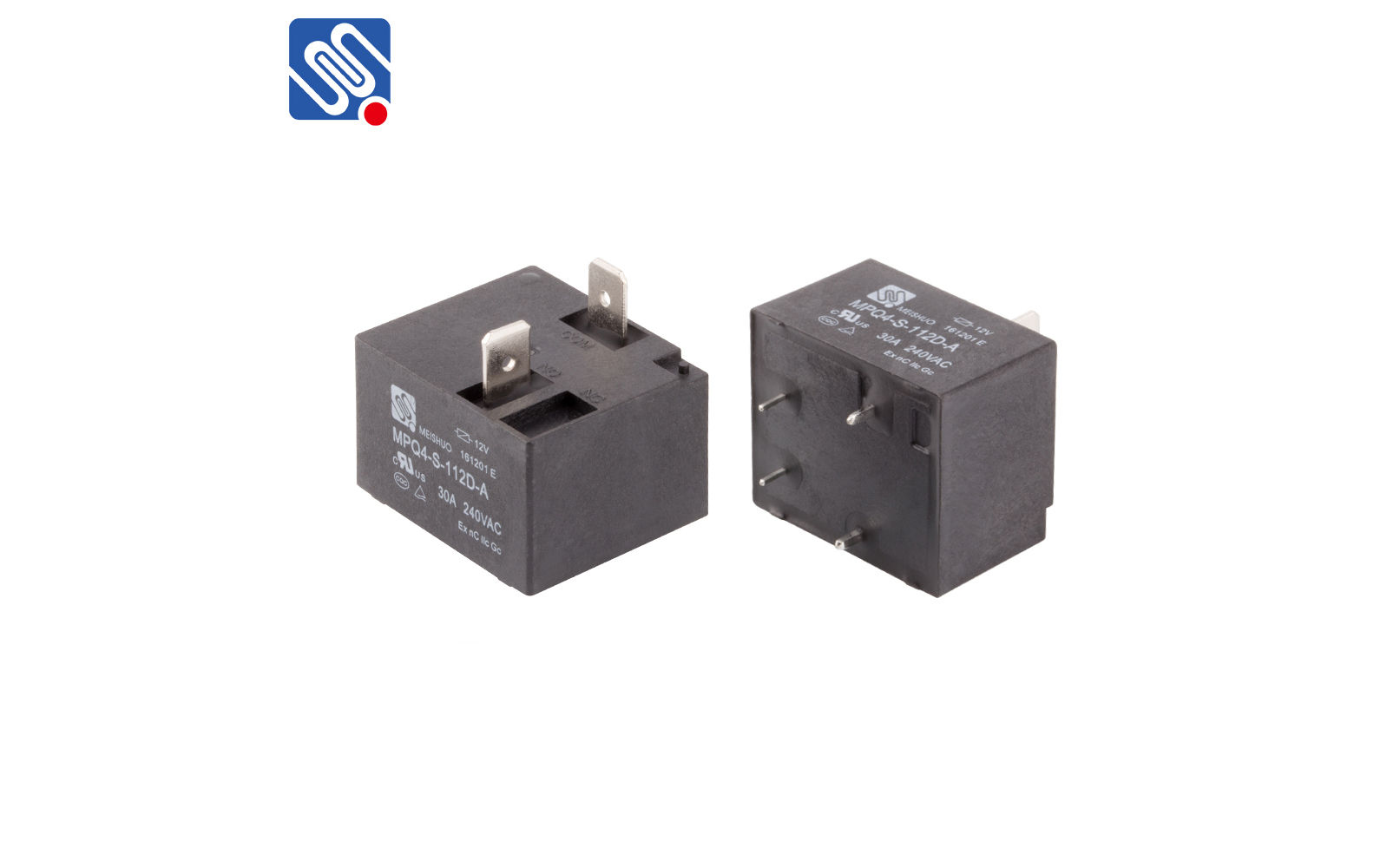

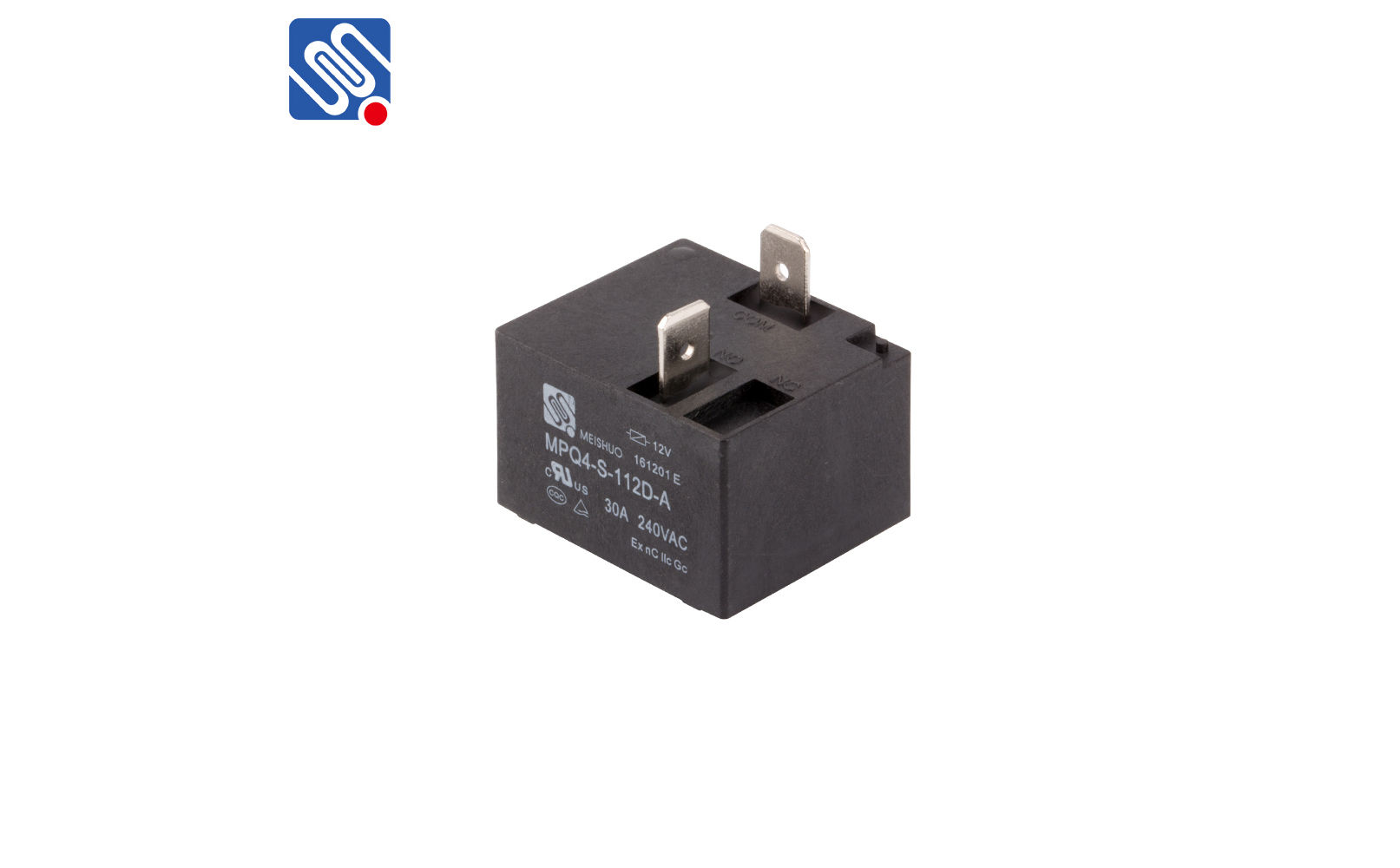

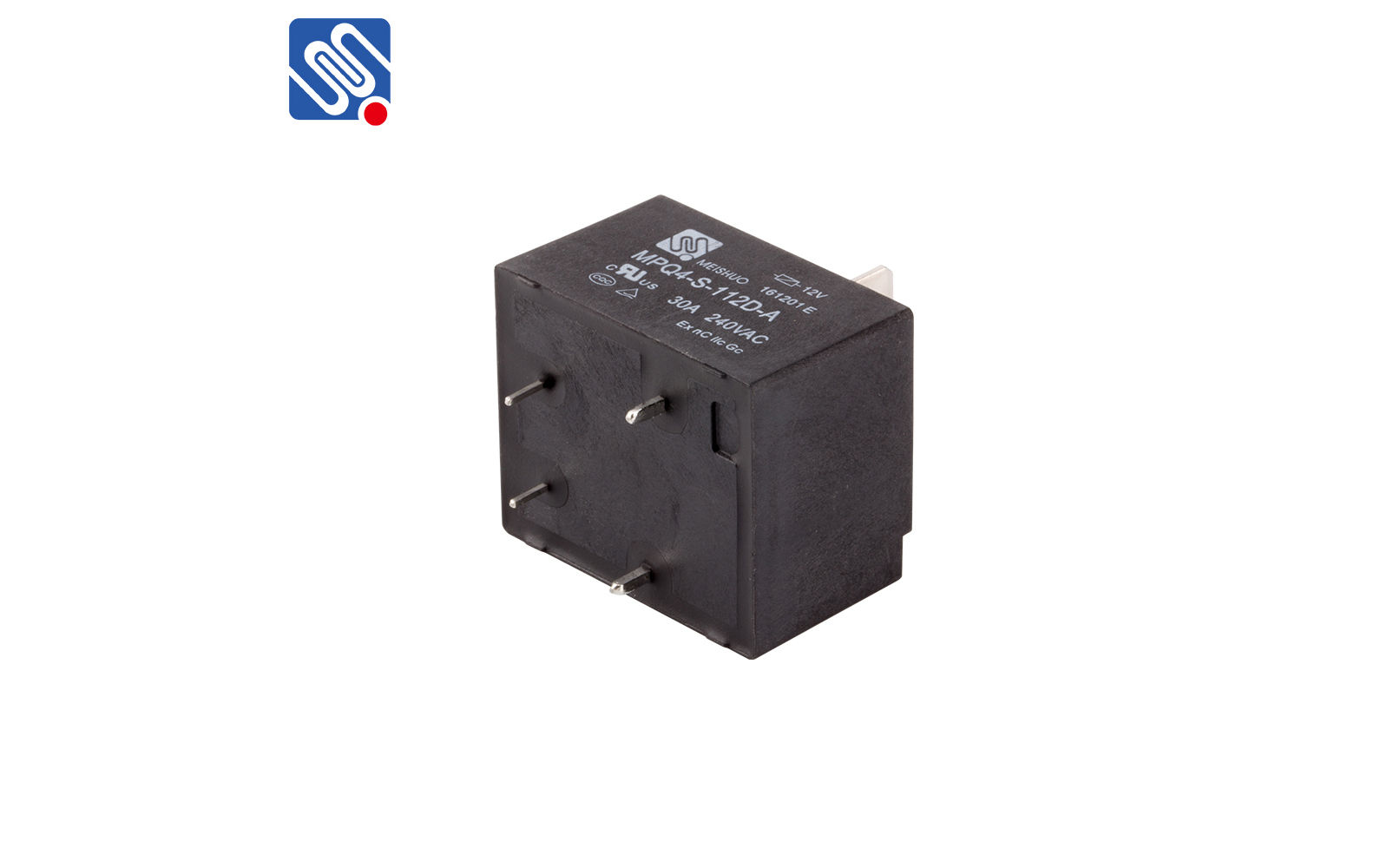

12V Relay switches MPQ4-S-112D-A is 30A sealed 12vdc one normally open 4pin PCB power relay, suitable for water heaters, electric cooker, washing machines, UPS, and air conditioners.

PARAMETER

Contact Arrangement: 1A,Change-over type
Contact material:AgNi,AgSnO2
Contact rating:30A
Coil voltage:12VDC
Electrical lift:100,000 cycles
Mechanical Life:1,000,000 cycles

                                                            Voltage  (VDC)
                                                            12

                                                            Operate Voltage   (VDC)
                                                            ≤9.0

                                                            Release Voltage  (VDC)
                                                            ≥1.2

                                                            Max Allowable coil voltage (VDC)
                                                            15.6

                                                            Coil Resistanc   (Ω±10%)
                                                            160

                                                            Coil Power  (W)
                                                            Approx. 0.9

Air conditioners
Electric cookers
Water heaters
UPS
Microwave oven, etc.
Washing machines
Electric kettles
