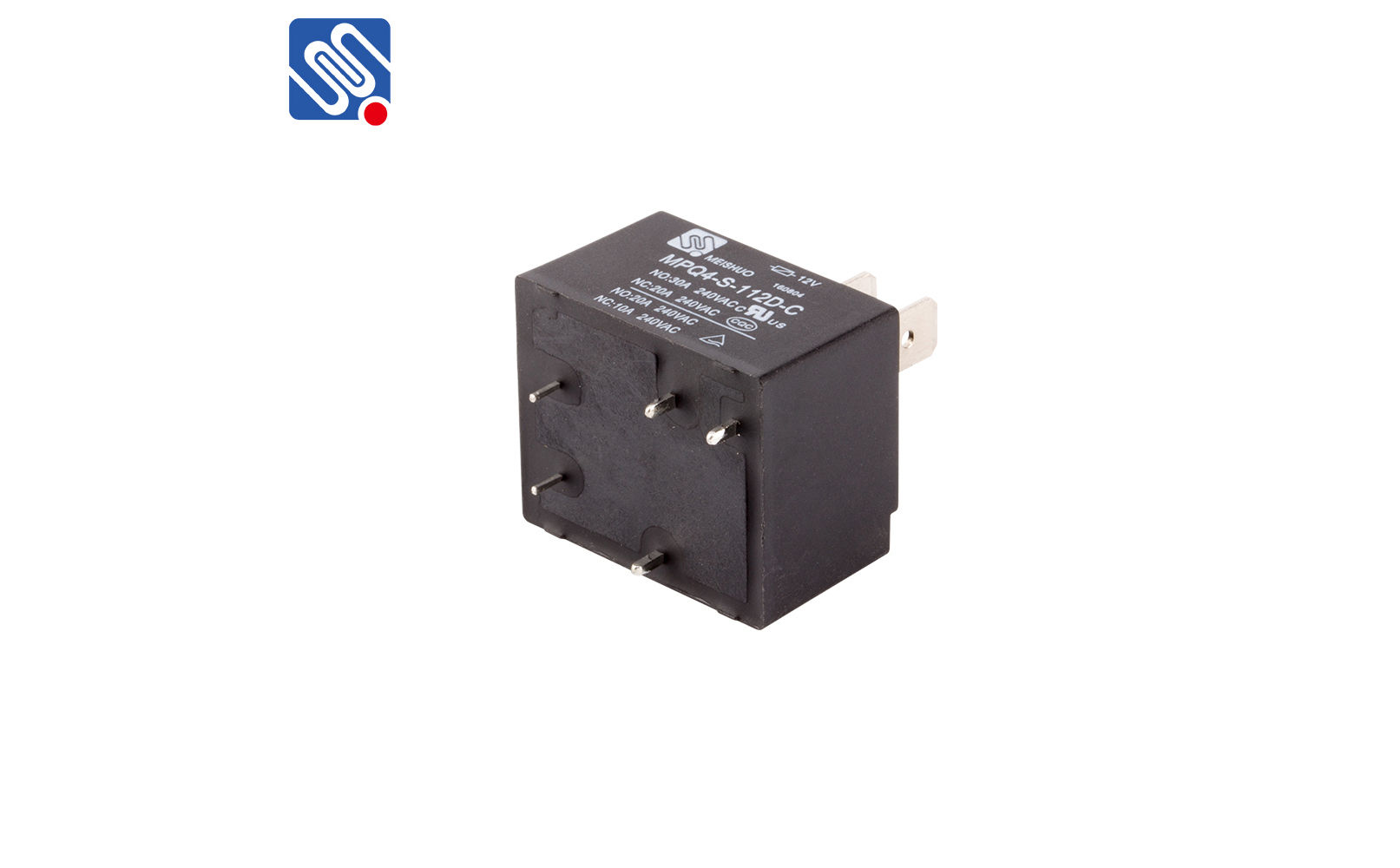

12 VOLT 30 AMP RELAY MPQ4-S-112D-C

(0 reviews)

Get Price

(111) Views

(0) Contacts

2 - 499 pieces 500 - 5999 pieces >= 6000 pieces
$0.90 $0.72 $0.64

Contact Company

Yueqing Meishuo Import And Export Co., Ltd.

Zhejiang, China

(712) Views

(0) Contacts

12 volt 30 amp relay MPQ4-S-112D-C is 30A sealed 12vdc 5pin mini PCB relay, suitable for water heaters, electric cookers, washing machines, UPS, and air conditioners.

PARAMETER

Contact Arrangement: 1C,Change-over type
Contact material: AgNi,AgSnO2
Contact rating: 10A/20A, 20A/30A
Coil voltage: 12VDC
Electrical lift: 100,000 cycles
Mechanical Life: 1,000,000 cycles

                                                            Voltage   (VDC)
                                                            12

                                                            Operate Voltage  (VDC)
                                                            ≤9.0

                                                            Release Voltage   (VDC)
                                                            ≥1.2

                                                            Max Allowable coil voltage (VDC)
                                                            15.6

                                                            Coil Resistanc   (Ω±10%)
                                                            160

                                                            Coil Power  (W)
                                                            Approx. 0.9

Air conditioners
Electric cookers
Water heaters
UPS
Microwave oven, etc.
Washing machines
Electric kettles
