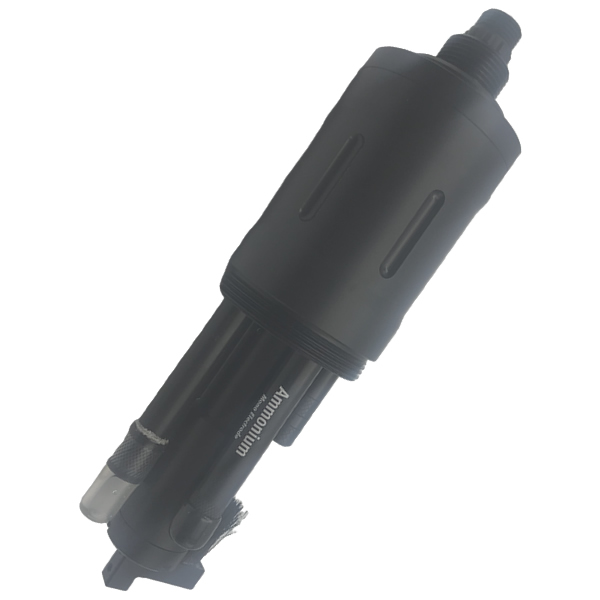

KWS200 Online NH4-N Ammonia Nitrogen Sensor

(0 reviews)

Get Price

(176) Views

(0) Contacts

$100.00 - $299.00/1 piece/Pieces(Min. order).

Contact Company

Xi'an Kacise Optronics Tech Co., Ltd.

Shaanxi, China

(682) Views

(10) Contacts

Kacise introduces an online ammonia nitrogen sensor that requires no reagents, is green and non-polluting, and can be monitored online in real-time. Integrated ammonium, potassium (optional), pH and reference electrodes automatically compensate for potassium (optional), pH, and temperature in water. It can be directly put into installation, which is more economical, environmentally friendly, and convenient than a traditional ammonia nitrogen analyzer. The sensor has a self-cleaning brush that prevents microbial adhesion, resulting in longer maintenance intervals and excellent reliability. It adopts RS485 output and supports Modbus for easy integration.

                                                            Model
                                                            KWS200

                                                            Material
                                                            POM

                                                            Measuring Range
                                                            0-1000mg/L NH4-N

                                                            Accuracy
                                                            5%

                                                            NH4-N Resolution
                                                            0.1 mg/L

                                                            Ph Range
                                                            4-10

                                                            Ph Accurate
                                                            ±0.1

                                                            Ph Resolution
                                                            0.01

                                                            Protection Grade
                                                            IP68

                                                            Deepest Depth
                                                            underwater 10 m

                                                            Temperature Range
                                                            0 ~ 50℃

                                                            Output
                                                            RS-485, MODBUS protocol

                                                            Power Supply
                                                            DC 8~26V, current <50mA

                                                            Size
                                                            Φ26*177.5 mm

                                                            Cable Length
                                                            5 m, customizable

Digital sensor, RS-485 output, support MODBUS
No reagents, no pollution, more economical and environmentally friendly
Automatically compensates for pH and temperature in water
Self-cleaning brush to prevent microbial adhesion and longer maintenance intervals
