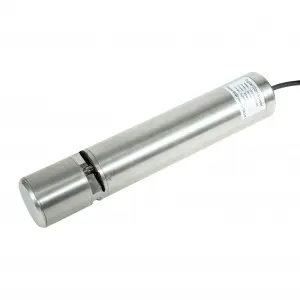

IoT Digital Nitrate Nitrogen Sensor

(0 reviews)

Get Price

(525) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(2213) Views

(11) Contacts

Measuring Principle
NO3-N will be absorbed in 210 nm UV light. When the Spectrometer Nitrate sensor is working, the water sample flows through the slit. When the light from the light source in the sensor passes through the slit, part of the light is absorbed by the sample flowing in the slit, and the other light passes through the sample and reaches the other side of the sensor. Calculate the concentration of nitrate.

                                                            Model
                                                            BH-485-NO3

                                                            Protocol
                                                            Modbus RTU RS485

                                                            Power Supply
                                                            DC12V

                                                            Features
                                                            210 nm UV light principle, 2-3 years lifespan

                                                            Measuring Range
                                                            Nitrate nitrogen NO3-N: 0.1~40.0mg/L

                                                            Accuracy
                                                            ±5%

                                                            Repeatability
                                                            ± 2%

                                                            Resolution
                                                            0.01 mg/L

                                                            Pressure range
                                                            ≤0.4Mpa

                                                            Sensor material
                                                            Body:SUS316L(freshwater),  Titanium alloy(Ocean marine); Cable:PUR

                                                            Calibration
                                                            Standard calibration

                                                            Power Supply
                                                            12VDC

                                                            Communication
                                                            MODBUS RS485

                                                            Working temperature
                                                            0-45℃(Non-freezing)

                                                            Dimensions
                                                            Sensor:Diam69mm*Length 380mm Protection	IP68 Cable length	Standard:10M,the maximum can be extended to 100m

1) Drinking water/surface water
2) Industrial production process water/sewage treatment, etc.,
3) Continuously monitor the concentration of nitrate dissolved in water, especially for monitoring sewage aeration tanks, controlling the denitrification process

4) No Sewage water, groundwater, city water

1) Nitrate nitrogen sensor is a direct measurement without sampling and pre-processing.
2) No chemical reagents, no secondary pollution.
3) Short response time and continuous online measurement.
4) The sensor has an automatic cleaning function that reduces maintenance.
5) Sensor power supply positive and negative reverse connection protection.
6) Sensor RS485 A/B terminal is connected to the power supply protection
