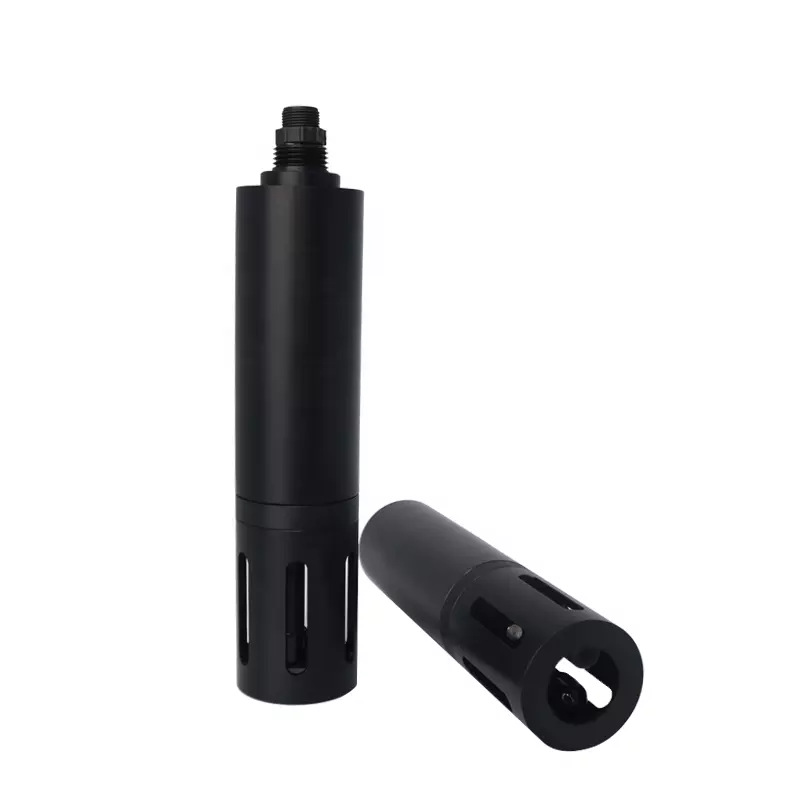

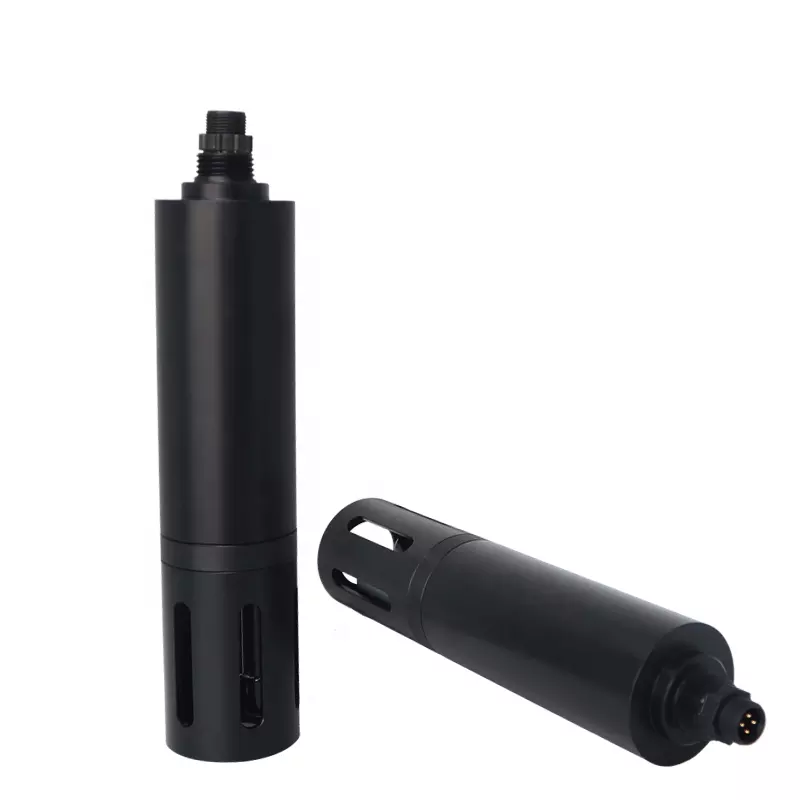

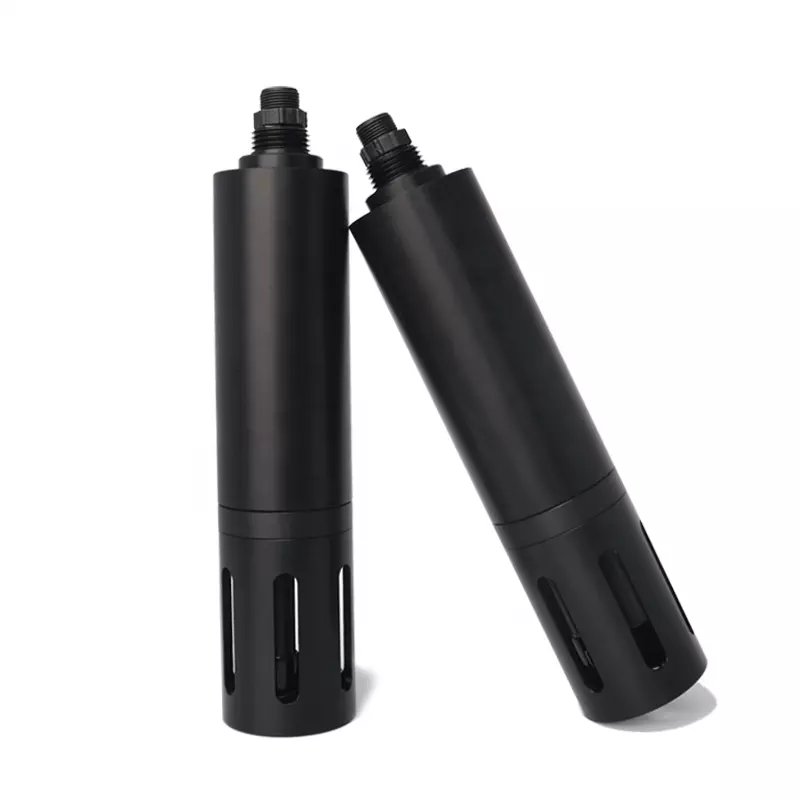

Online Ammonia Nitrogen Sensor

(0 reviews)

920 USD

(593) Views

(0) Contacts

1 unit

$920.00

Contact Company

Xi’an Desun Uniwill Electronic Technology Co., Ltd

Shaanxi, China

(2349) Views

(8) Contacts

Online ammonia nitrogen sensors, no reagent, green and pollution-free, can be monitored online in real-time. Integrated ammonium ion, potassium ion (optional), pH and reference electrode, automatic compensation for potassium ion (optional), pH, and temperature in water. Can be directly installed, compared with traditional ammonia nitrogen analyzer, more economical and environmentally friendly, convenient, and fast. The sensor is equipped with a self-cleaning brush, which can prevent the adhesion of microorganisms, make the maintenance cycle longer, and have excellent reliability. It adopts RS485 output and supports Modbus for easy integration.

INSTALLATION METHOD OF AMMONIA NITROGEN SENSOR:

Direct input installation, compared to traditional ammonia nitrogen analyzers, requires no reagents, is more economical and environmentally friendly, and the electrodes can be replaced separately.

Technical Parameters

product name	Online ammonia nitrogen sensor
model	DSN260
Ammonia nitrogen range	0-1000mg/L NH4-N
Ammonia nitrogen accuracy	5%
Ammonia nitrogen resolution	0.1mg/L
PH range	4-10
PH accuracy	±0.1
PH resolution	0.01
Protection class	IP68
temperature range	0～50℃
assembly	Input
Power supply	DC 5 ~ 12V, current <50mA (when not cleaning)
output signal	Digital RS-485 output, MODBUS protocol
Cable length	10 meters (default), can be customized
Housing material	POM

                                                            Product name
                                                            Ammonia nitrogen sensor

                                                            Output signal
                                                            RS-485 output MODBUS protocol

                                                            Detection principle
                                                            ion selective electrode method

                                                            Measurement range
                                                            Ammonia nitrogen: 0~2/0~10/0~1000mg/L NH4-N  PH: 4-10ph

                                                            Resolution
                                                            Ammonia nitrogen: 0.1mg/L  PH: 0.01ph

                                                            Measurement accuracy
                                                            Ammonia nitrogen: ±5%  PH: ±0.1ph

                                                            Temperature range
                                                            0~50°C

                                                            Storage temperature
                                                            -2~80°C

                                                            Waterproof level
                                                            IP68

                                                            Cable length
                                                            Standard 5 meters

                                                            Under pressure
                                                            1bar

                                                            Product material
                                                            POM

                                                            Product Size
                                                            Φ48 X 209mm

                                                            Power information
                                                            DC 6~12V, current <50mA

Digital sensor, RS-485 output, support MODBUS
No reagents, no pollution, more economical and environmentally friendly
Automatically compensate pH and temperature in water

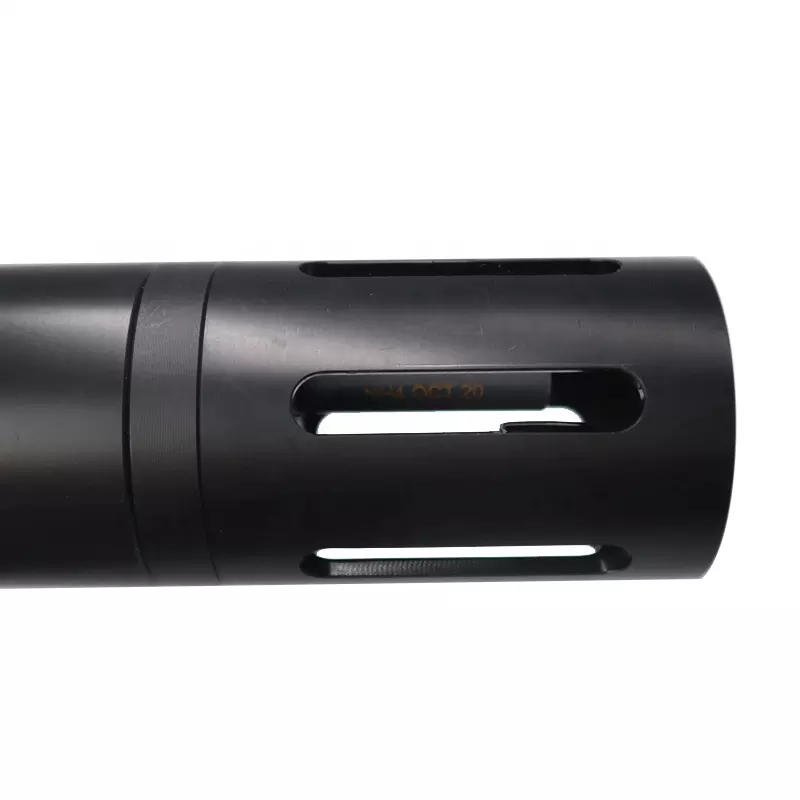

with a self-cleaning brush to prevent microorganisms from attaching and longer maintenance intervals
The Sensor adopts the ion electrode method without electrolyte.
Can output parameters such as pH temperature.
Electrodes can be replaced individually for easy maintenance.
