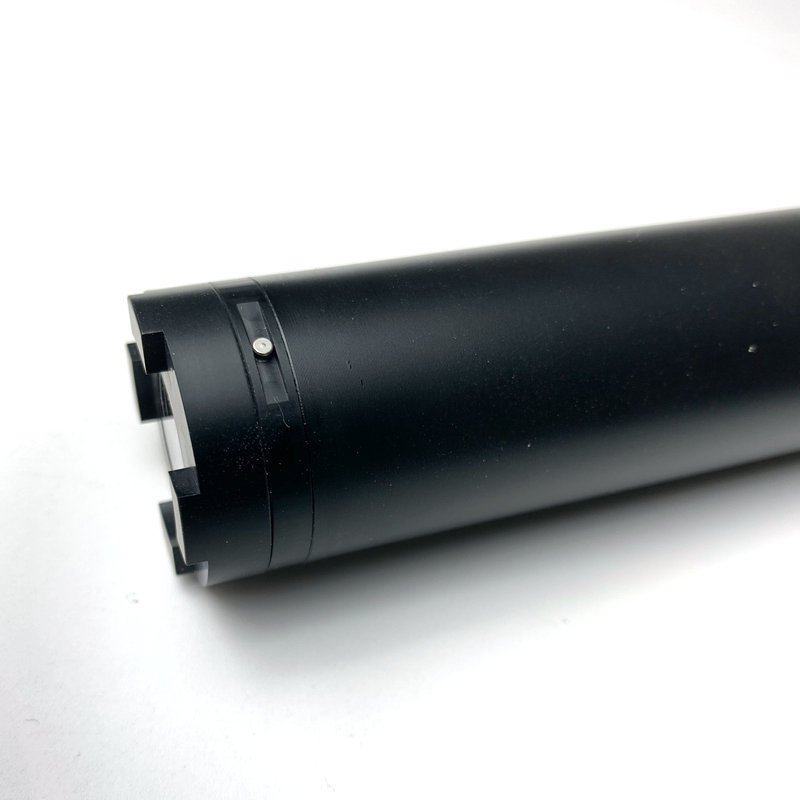

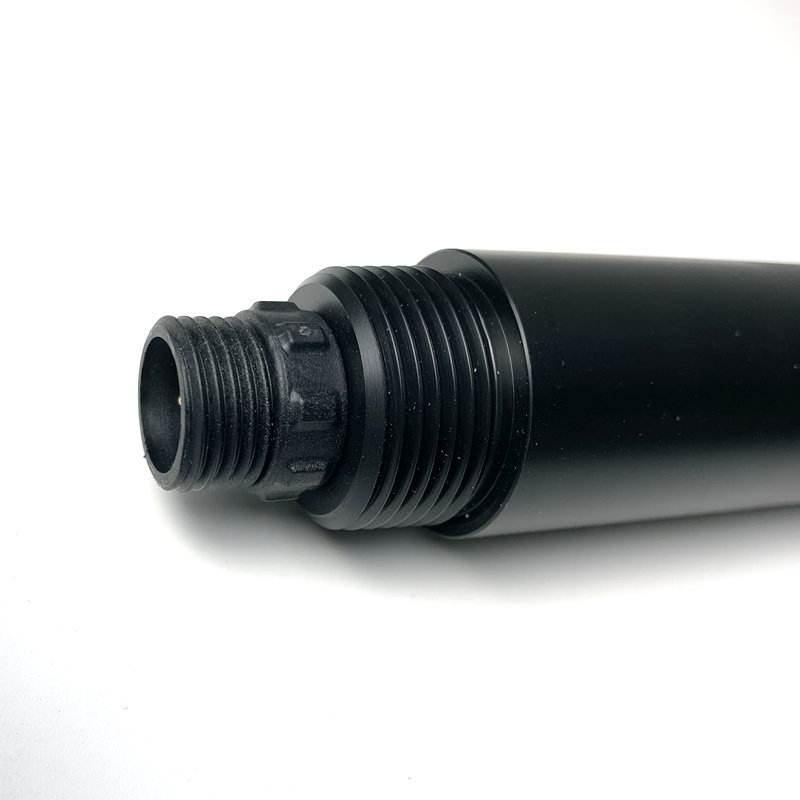

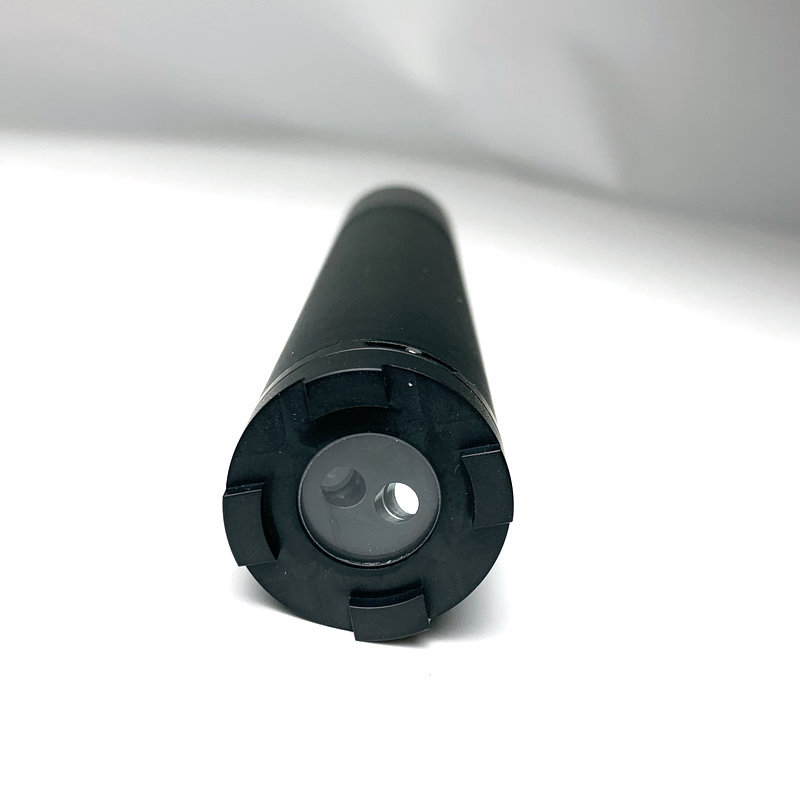

Online Blue Green Algae Sensor

(0 reviews)

1219 USD

(608) Views

(0) Contacts

US$1,219.00 / Piece

Contact Company

Yantai Chemins Instrument Co., Ltd.

Shandong, China

(2123) Views

(20) Contacts

The blue-green algae sensor utilizes the characteristic that the cyanobacteria have an absorption peak and an emission peak in the spectrum. The spectral absorption peak of the cyanobacteria emits monochromatic light to the water, and the cyanobacteria in the water absorbs the energy of the monochromatic light, releasing another wavelength. The monochromatic light of the emission peak, the light intensity emitted by the cyanobacteria is proportional to the content of cyanobacteria in the water.

                                                            Model
                                                            BGA-206A

                                                            Conditional requirements
                                                            The distribution of blue-green algae in water is uneven, and it is recommended to monitor more;  The water turbidity is less than 50 NTU.

                                                            Measuring range
                                                            0～300.0Kcells/mL

                                                            Resolution
                                                            0.1Kcells/mL(100cells/mL)

                                                            Accuracy
                                                            ±3%，±0.3℃

                                                            Calibration
                                                            Two-point calibration

                                                            Shell material
                                                            PVC and POM

                                                            Protection grade
                                                            IP68

                                                            Deepest depth
                                                            Underwater 20 m

                                                            Storage temperature
                                                            -15～65℃

                                                            Signal output
                                                            RS-485(Modbus/RTU)

                                                            Power supply
                                                            12～24VDC

                                                            Cable length
                                                            5 meters, can be customized

                                                            Power
                                                            0.2W@12V

Monitoring the concentration of microalgae in the ocean harbor
Monitoring green algae and cyanobacteria such as rivers and lakes
Monitoring marine algae red algae
Determination of green algae concentration in the treatment of green algae cultivation equipment
Support RS-485 (Modbus/RTU protocol)
Convenient, fast, stable, and easy to maintain
