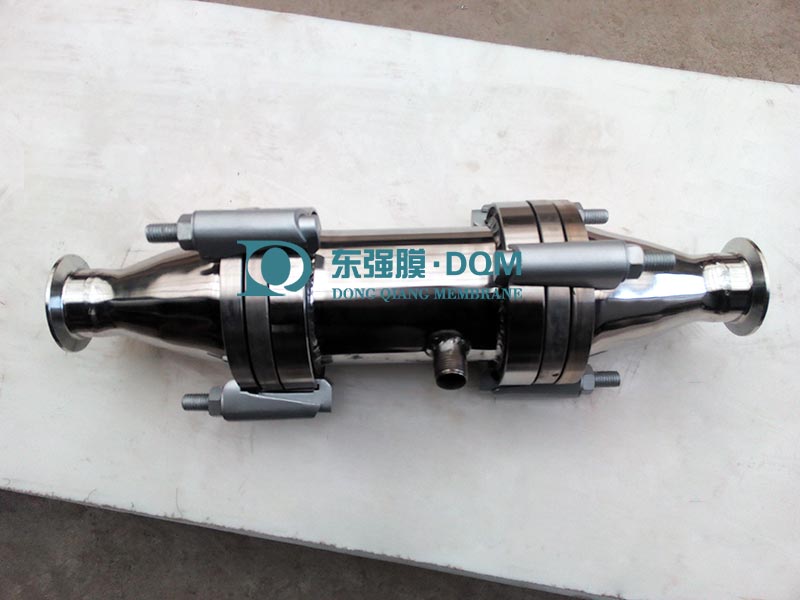

The membrane module of the ceramic membrane is called ceramic membrane module or inorganic membrane module (the application of ceramic membrane in the field of the inorganic membrane is more successful and extensive).
The ceramic membrane module mainly includes two parts: stainless steel shell and seal, which are the main components of the product.

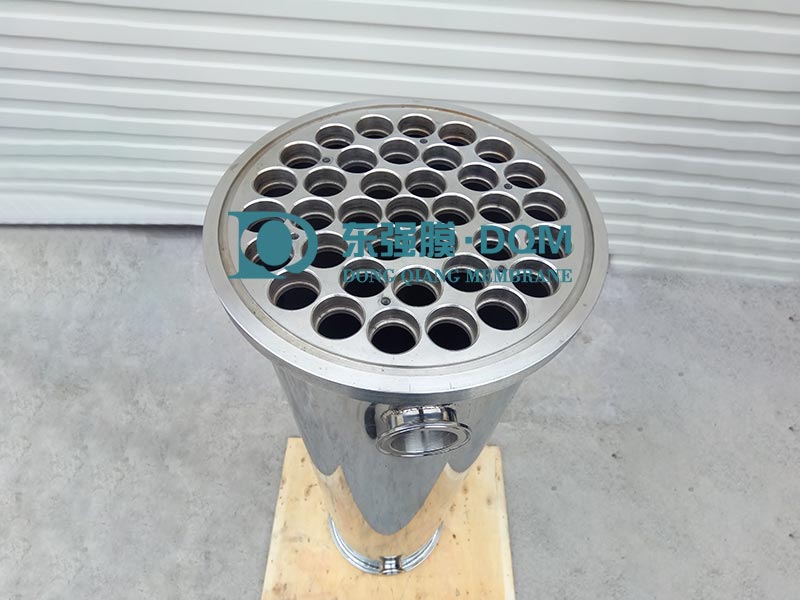

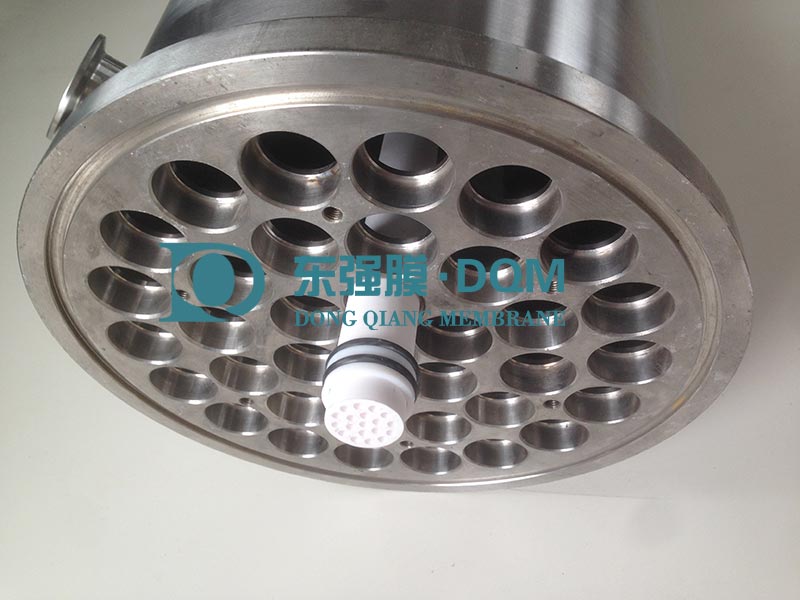

Membrane modules are pressure-resistant shells assembled with ceramic membrane elements.

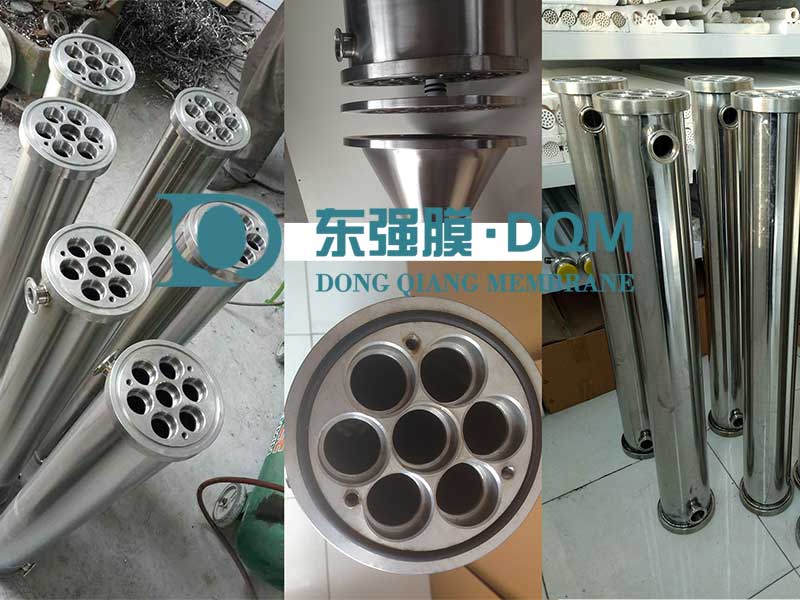

According to industrial production needs, the centralized filling of ceramic membrane elements with different outer diameters and different areas can be realized through membrane module shells of different specifications.
The filling area of a single set of membrane modules ranges from 0.02m 2 to 22m 2 .
The shape design and sealing design of the membrane module is very important to the operation of the ceramic membrane complete system.

                                                            Number of filled membrane elements

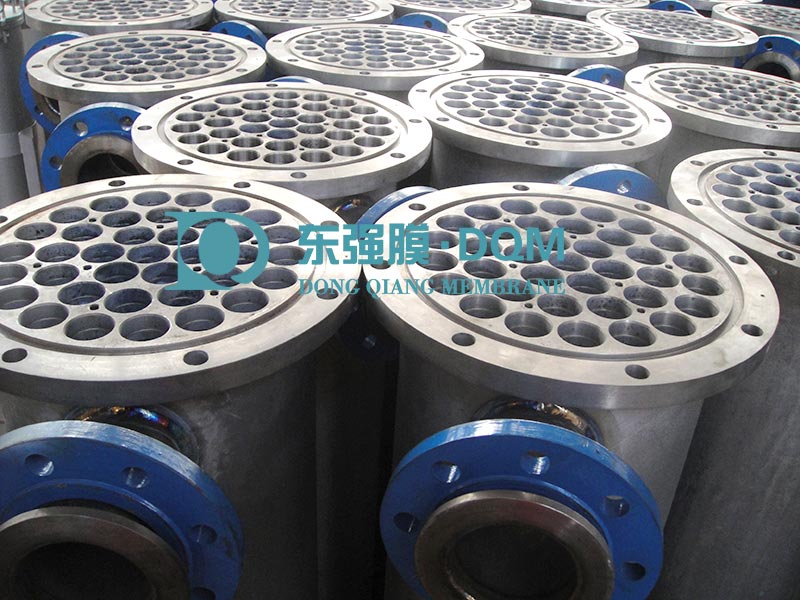

                                                            1 core, 3 cores, 7 cores, 12 cores, 19 cores, 37 cores, 61 cores, 76 cores, 91 cores, 138 cores, 241 cores, etc.

                                                            Matching membrane element length and diameter
                                                            100～1800mm/outer diameter : 25, 30, 40mm

                                                            Pressure Rating
                                                            0-1.0Mpa, 0-1.6 Mpa, 0-2.5Mpa, 0-4.0Mpa

                                                            Main body material
                                                            SUS304(L), SUS316(L), Ti, carbon steel/carbon steel with rubber, PVC, FRPP

                                                            Standard
                                                            ISO, DIN/chemical grade, sanitary grade

                                                            Sealing material
                                                            EPDM, fluorine rubber (Fluoro Rubber), Silicon Rubber (Silicon), Polytetrafluoroethylene (PTFE)

                                                            Interface Type
                                                            Flange, Clamp, Whorl Coupling
