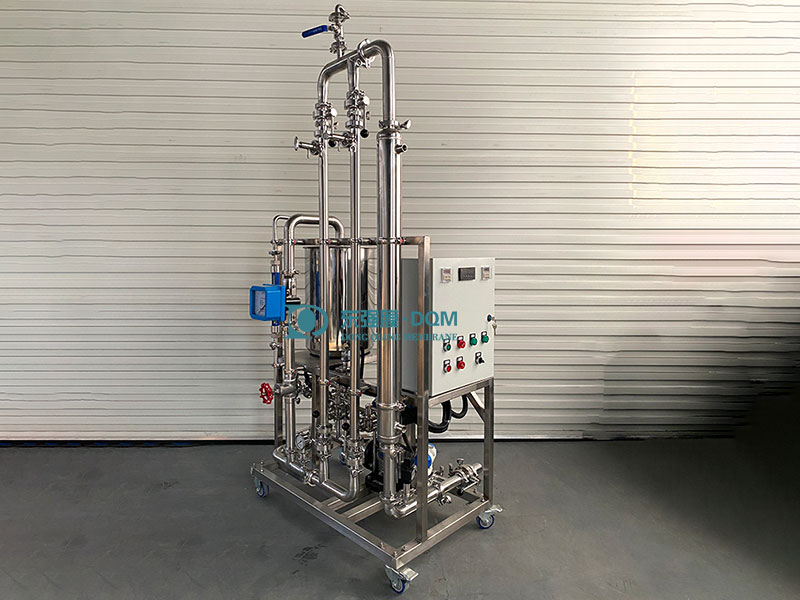

Ceramic Membrane Separation Test Machine DQGM-M22

(0 reviews)

Get Price

(170) Views

(0) Contacts

1 piece/pieces

$2,000.00 - $10,000.00

Contact Company

Zibo Dongqiang Membrane Technology Co., Ltd.

Shandong, China

(999) Views

(9) Contacts

Ceramic membrane elements (UF, MF) with different pore sizes can be replaced.
It can replace the traditional process of plate and frame filtration, centrifugal separation, solvent extraction, natural sedimentation, diatomaceous earth filtration, and other processes.
It can reduce the amount of activated carbon in decolorization, improve the adsorption efficiency of resin adsorption, and prolong the regeneration period of ion exchange resin.
The use of ceramic membrane filtration and separation technology has the advantages of fast filtration, high yield, good quality, low operating cost, and long service life.
The ceramic membrane experimental equipment is especially suitable for scientific research institutes, colleges and universities, and manufacturers. It can be widely used in the experimental research of extraction, clarification, and impurity removal in pharmaceutical and biological engineering, food and beverage, chemical industry, powder, environmental protection, etc.
It is a powerful helper for research and production personnel and can solve problems that cannot be solved by old technology and old equipment.
Dongqiang company's series of equipment can be divided into dozens of specifications and models according to Dongqiang's different filtration precision and different types of membrane tubes (ceramic membrane or ceramic composite membrane), which can meet different customers, different systems, different technical requirements, and different types. throughput requirements.

Equipment related parameters

1 set of basic electrical control cabinet

With micro-powder extraction and filtering function

Equipment configuration: one stainless steel main circulating pump, three ceramic composite membrane elements, three ceramic composite membrane modules, one basic electrical control cabinet, one shock-resistant pressure gauge, one thermometer, one material tank; equipment brackets, pipes, Valves, tees, and some of their connecting pieces.
Performance description

Through this series of experimental equipment, the influence curves of important process parameters and corresponding cleaning schemes on membrane flux and membrane performance can be obtained, and the experimental data are true and reliable.
It is completely reliable to carry out the pilot scale and industrial production according to the test results, because the amplification of the process is completely physical amplification, and our process is mature, the technology is advanced, and the successful engineering experience is very rich!
The manufacturing material of this series of equipment is completely made of sanitary stainless steel, which will not cause secondary pollution to the processed materials; the obtained products have high quality and good long-term storage stability; the core ceramic membrane tube has good regeneration performance, and long service life; the degree of process integration is high; Small footprint, easy operation and maintenance, and low operating cost.

                                                            Equipment size
                                                            1300 (length) x 600 (width) x 1750 (height) mm

                                                            Number of membrane modules
                                                            3

                                                            Adapt to working temperature
                                                            5-80℃

                                                            Dimensions
                                                            800×400×1500mm

                                                            The minimum pressure on the permeate side
                                                            Pp=0.3bar

                                                            Operating pressure
                                                            0-0.4Mpa

                                                            Aperture of ceramic membrane element
                                                            2nm 5nm 10nm 12nm 15nm 20nm 50nm 100nm 200nm 500nm 800nm ​​1200nm 1400nm

                                                            Membrane surface velocity of circulation side
                                                            Vf=4m/s

                                                            Material tank
                                                            18L /38L

                                                            Dimensional parameters of membrane element
                                                            1016mm (length) ф30 mm (inner diameter)

                                                            Power
                                                            0.65KW

                                                            Single-core filter area
                                                            0.24 m 2

                                                            Minimum circulation volume
                                                            5L/8L

                                                            Filtration rate
                                                            20-100L/H

                                                            Adapt to PH value range
                                                            0-14

                                                            Channel
                                                            19 channels-ф4mm, multi-channel cylindrical

It has been successfully used in many fields such as the food industry, beverage industry, deep processing of plant (medicine), deep processing of agricultural products, deep processing of water (sea) products, biological medicine, biological fermentation, fine chemical industry, etc.
It is used for material clarification, sterilization, and impurity removal. Filtration, separation, and concentration process.
It is widely used in biological, pharmaceutical, food, chemical, environmental protection, and other fields, and is used for process experiments such as separation, purification, clarification, and sterilization of feed and liquid.

Equipment basic features

Easy to clean, reverse flushing, strong regeneration ability
Strong anti-microbial ability, does not interact with microorganisms
Good chemical stability, acid resistance, alkali resistance, and organic solvent resistance
High separation efficiency, simple separation process, few supporting devices, low energy consumption, easy operation, and operation
Using cross-flow filtration, due to the high flow rate of the membrane surface, the accumulation of pollutants on the membrane surface is reduced, and the flux of the membrane is improved

Equipment advantage

The high degree of process integration
The obtained products have high quality and good long-term storage stability
The core ceramic membrane tube has good regeneration performance and a long service life
Small footprint, easy operation, and maintenance, low operating cost
The manufacturing material is completely made of hygienic and corrosion-resistant stainless steel, which will not cause secondary pollution to the processed materials
