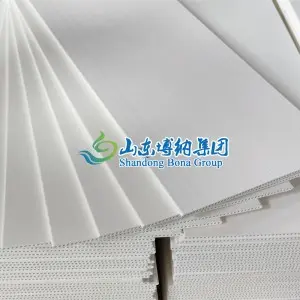

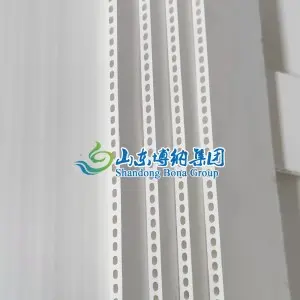

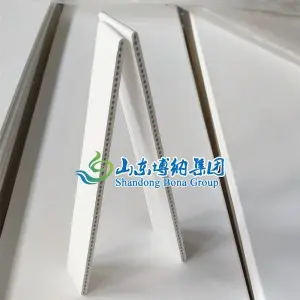

Flat Ceramic Membrane

(0 reviews)

Get Price

(117) Views

(0) Contacts

1 - 4 sets >= 5 sets
$200.00 $150.00

Contact Company

Shandong Bona Biological Technology Group Co., Ltd.

Shandong, China

(341) Views

(0) Contacts

Alumina, zirconia, titanium oxide, and other inorganic minerals are sintered at high temperatures to create flat ceramic membrane, a precision filter material. Support, transition, and separation layers all have porous structures and are dispersed asymmetrically along gradients. The processes for separation, clarity, purification, concentration, sterilizing, desalination, etc. can all use flat ceramic membranes.

                                                            Membrane shape
                                                            Hollow, flat

                                                            Flexural strength
                                                            ≥40 MPa

                                                            Membrane structure
                                                            Asymmetric, outside membrane

                                                            Compressive strength
                                                            ＞70 MPa

                                                            Membrane material
                                                            AL2O3, ZrO2, TiO2 etc.

                                                            Length
                                                            100-1100mm

                                                            Width
                                                            110/145/250

                                                            Max membrane area Per Unit
                                                            0.5 m2

                                                            PH
                                                            0-14

                                                            Thickness
                                                            3/6 mm

                                                            Membrane pore size
                                                            0.1μm, 0.5μm, 1.2μm

                                                            Pure water flux
                                                            1000LMH

Applications of Flat Ceramic Membrane

Membrane bioreactor for the treatment of industrial wastewater
Prior to seawater desalination
Treatment of sewage in cities
Sewage treatment at home
Treating sewage at hospitals
Leachate treatment in landfills
Reverse osmosis (RO) system pretreatment

Flat sheet ceramic membrane benefits

Narrow pore size distribution and fine separability.
Excellent abrasion resistance and high mechanical strength (no hollow fiber fracture).
Excellent heat stability and good solvent stability.
A wide range of pH (0–14) and chemical compatibility.
Consistent and long-lasting performance.
High flux and simple cleaning (chemical agent cleaning, water backwash, and air cleaning).
Saving energy.
Suitable for goods with high viscosity, high concentration factors, and fine filtering.
