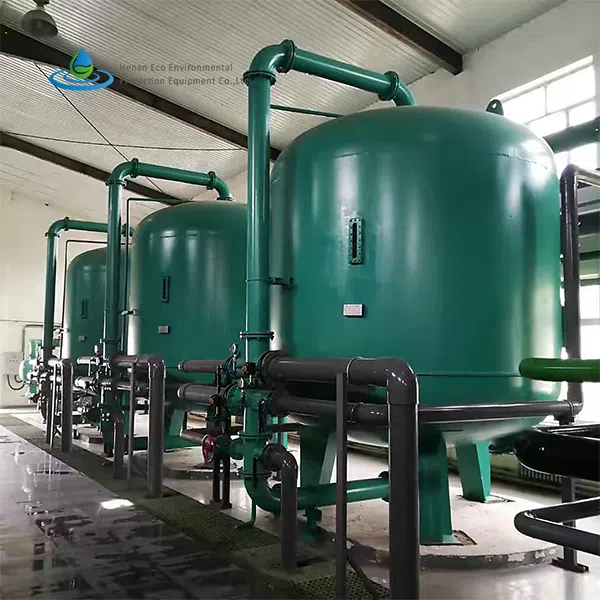

Multi-Media Filter

(0 reviews)

Get Price

(164) Views

(0) Contacts

The inlet water turbidity is required to be less than 20 degrees, and the effluent turbidity can reach below 3 degrees.

Contact Company

Henan Eco Environmental Protection Equipment Co., Ltd

Henan, China

(818) Views

(2) Contacts

                                                            Filtration speed
                                                            7~15m/h

                                                            Backwash time
                                                            5-10 minutes

                                                            Backwash intensity
                                                            15L/m2s (single screen) 12L/m2s (dual screen)

                                                            Influent turbidity
                                                            <15mg/L

                                                            Compressed air pressure
                                                            1-2Kq/cm2

                                                            Turbidity of effluent
                                                            <5mg/L

                                                            Backwash compressed air volume
                                                            18-25L/m2s

                                                            Inlet water PH
                                                            6~9

                                                            Working temperature
                                                            Room temperature

                                                            Working pressure
                                                            <04MPa

                                                            Filter layer height
                                                            800-1200mm

Water pretreatment process for turbidity removing systems, reverse osmosis systems, ion exchange softening and desalination systems, surface water
Groundwater desilting filter material is refined quartz sand and anthracite, etc.

Low cost, low operating cost
Easy to Maintenance, filter media can be reused after backwashing
Good filtering performance with a smaller footprint
