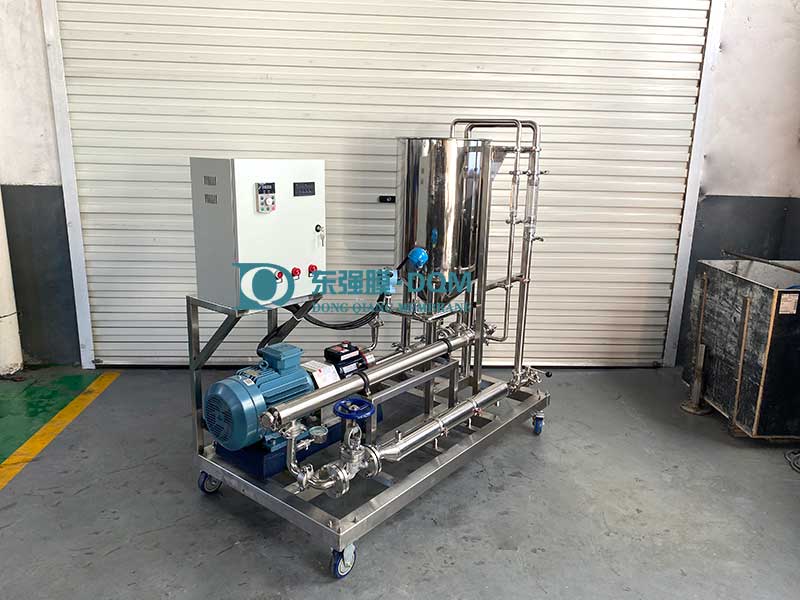

Organic Membrane Filtration Pilot System DQGM-1819W

(0 reviews)

Get Price

(115) Views

(0) Contacts

Contact Company

Zibo Dongqiang Membrane Technology Co., Ltd.

Shandong, China

(998) Views

(9) Contacts

The organic membrane filtration pilot-scale system (DQGM-1819W) has the characteristics of strong anti-fouling ability, easy cleaning, and high-pressure resistance.
It can be replaced with microfiltration, ultrafiltration, and nanofiltration membrane elements.
It can complete filtration experiments or production of different precisions, realize unified experiments, unified cleaning, and facilitate operation requirements; it is widely used in the separation and purification of fermentation, plant extraction, food and beverage, biopharmaceutical, chemical industry, environmental protection, and other cross fields.

Basic configuration

: 1 Vanner stainless steel circulating pump, 1 SUS316L stainless steel membrane module, 2 membrane cores; 2 shock-resistant pressure gauges, 1 pressure regulating valve, 1 material tank; 1 temperature sensor, 1 pressure sensor, equipment bracket, A number of chain joints, pipes and their connecting parts; a set of variable frequency start-up system, a set of overpressure automatic protection system, and a set of overtemperature automatic protection system;

                                                            Minimum circulation volume
                                                            10L

                                                            Material tank
                                                            100L

                                                            Working pressure
                                                            0-4.0MPa

                                                            Working temperature
                                                            4-55℃

                                                            Pump power
                                                            3KW

                                                            pH range
                                                            2-12

                                                            Filtration rate
                                                            30--100L/H

                                                            Equipment size
                                                            600 (length) * 800 (width) * 1500 (height) mm

Food and Beverage: Sterilization and Clarification Filtration of Wine, Beer, Cider, Juice

Condiments: sterilization and clarification filtration of soy sauce, vinegar, etc.

Bioengineering: clarification and filtration of biological fermentation broth; clarification and filtration of plant extracts

Pharmaceutical engineering: purification, concentration, and separation of vitamins, penicillin, cephalosporin C, erythromycin, etc.; clarification and filtration of traditional Chinese medicine extracts

Petrochemical metallurgy: clarification and filtration of heavy metals, strong acids, and strong alkaline solutions, impurity removal, cutting fluid filtration

Environmental protection engineering: oily emulsion wastewater treatment and various sewage treatment; landfill leachate MBR process; various waste acid and waste alkali recovery and pretreatment

Features and process introduction

The membrane elements are imported membrane elements, one 10000D ultrafiltration membrane element, and one 150D nanofiltration membrane element, and the membrane elements meet the US FDA, USDA, 3-A sanitary standards
It can be replaced with other types of microfiltration, ultrafiltration, nanofiltration membrane, and reverse osmosis membrane elements;
With automatic overpressure protection function and overtemperature automatic protection
With a heat exchanger, the material can be cooled or heated
All stainless steel welding is protected by automatic argon filling, single-sided welding, and double-sided forming, the inner and outer surfaces of the pipeline are of good quality, easy to operate, clean and hygienic, safe, and reliable.
