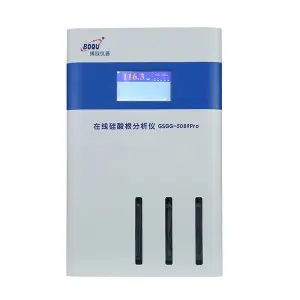

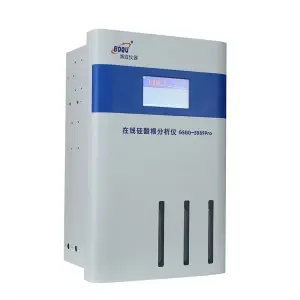

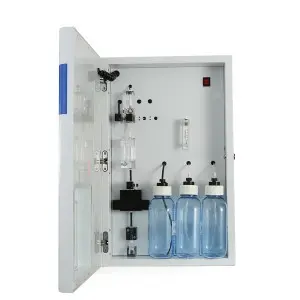

GSGG-5089Pro Industrial Online Silicate meter is an instrument that can finish automatically chemical reactions, optical detection, graphic display, control output, and data storage capabilities, and high-precision online automatic instrumentation; It adopts a unique air mixing and photoelectric detection technology, and it has high chemical reaction speed and high measurement accuracy are superior characteristics; it has a color LCD display, with rich colors, text, charts, curves, etc., to display the measurement results, system information, and a full English menu operation interface; humanized design concept and high-tech fully integrated, highlights the advantages of the instrument and product competitiveness.

                                                            Model No
                                                            GSGG-5089Pro

                                                            Channel
                                                            1 ~ 6 channels to for optional, cost savings.

                                                            Features
                                                            High accuracy, fast response, long life, good stability

                                                            Output
                                                            4-20mA

                                                            Protocol
                                                            Modbus RTU RS485, LAN、WIFI or 4G(Optional)

                                                            Power Supply
                                                            AC220V±10%

                                                            Measuring range
                                                            0~20ug/L, 0~100ug/L, 0-2000ug/L, 0~5000ug/L(special) (optional)

                                                            Accuracy
                                                            ± 1% F.S

                                                            Environment humidity
                                                            <85% RH

                                                            Reproducibility
                                                            ± 1% F.S

                                                            Stability
                                                            drift ≤ ± 1% F.S/24 hour

                                                            Response time
                                                            Initial response is 12 minutes, continuous operation completes measurement every 10 minutes

                                                            Sampling period
                                                            10 minutes/Channel

                                                            Watery conditions
                                                            Flow> 50 ml / sec, Temperature: 10 ~ 45 ℃, Pressure: 10kPa ~ 100kPa 8. Ambient temperature	5 ~ 45 ℃ (higher than 40 ℃, reduced accuracy)

                                                            Reagent consumption
                                                            three reagents, 1L/kind/month

                                                            Hole size
                                                            665mm × 405mm

                                                            Output signal
                                                            4-20mA

                                                            Communication
                                                            RS-485、LAN、WIFI or 4G etc

                                                            Alarm
                                                            buzzer, relay normally open contacts

                                                            Power supply
                                                            AC220V±10%  50HZ

                                                            Power
                                                            ≈50VA

                                                            Dimensions
                                                            720mm (height) × 460mm (width) × 300mm (depth)

Thermal power plants, chemical industry, etc

1. Low detection limit, very suitable for power plant water feed, saturated steam, and superheated steam silicon content detection and control;
2. Long-life light source, using a cold monochrome light source
3. Historical curve recording function can store 30 days of data
4. Automatic calibration function, period arbitrarily set
5. Support multi-channel measurements in water samples, optional 1-6 channels
6. Achieve maintenance-free, except by adding reagents, and guide standards.
