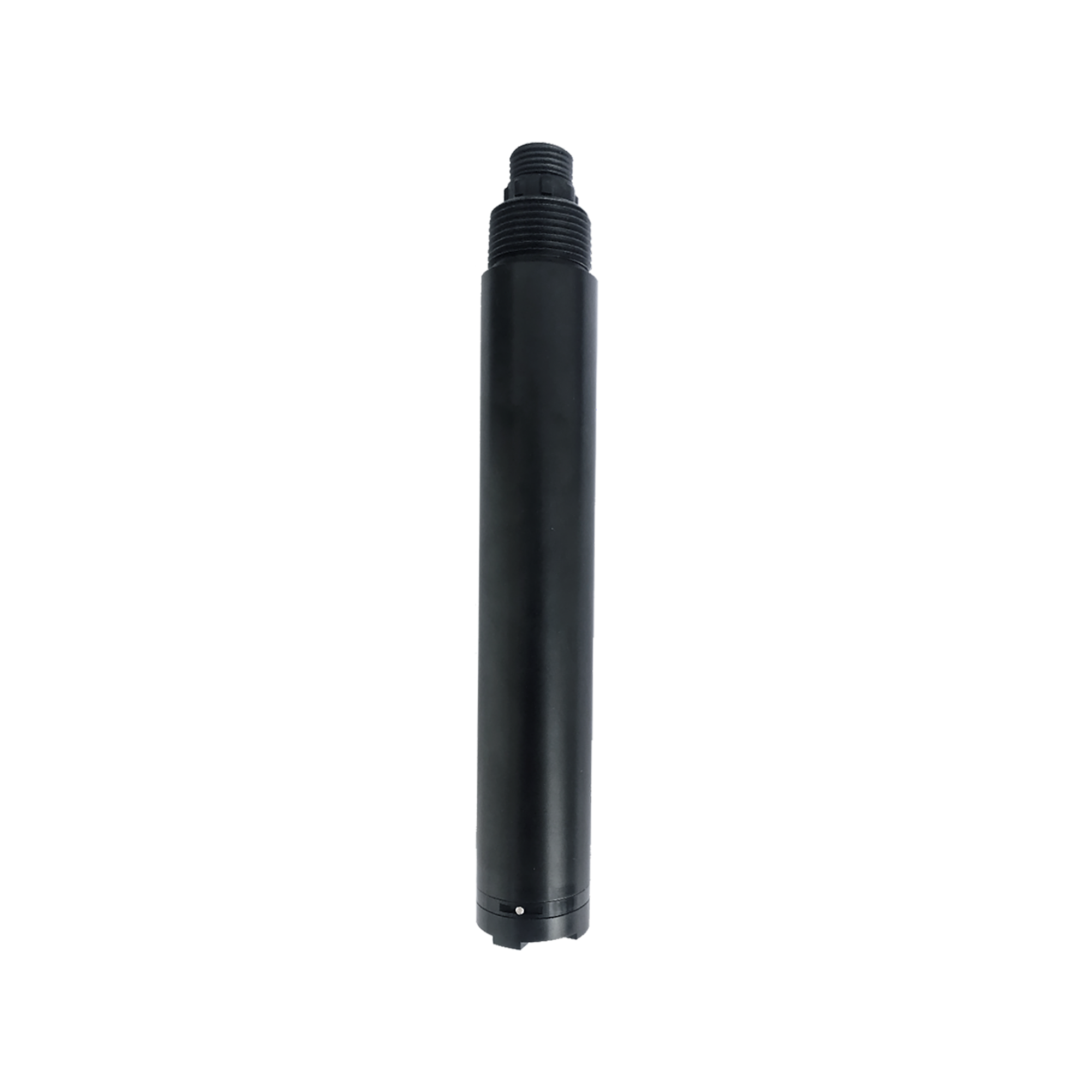

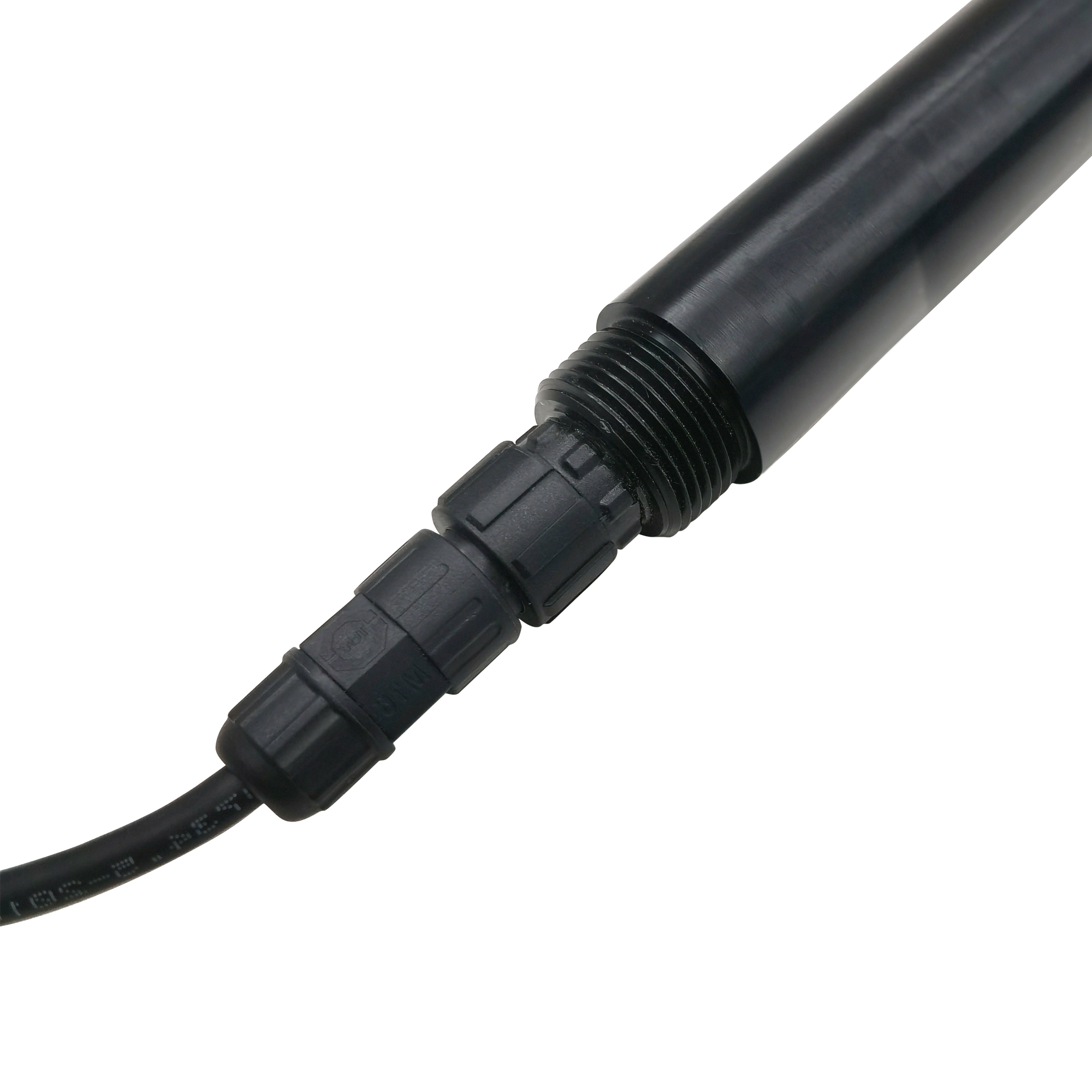

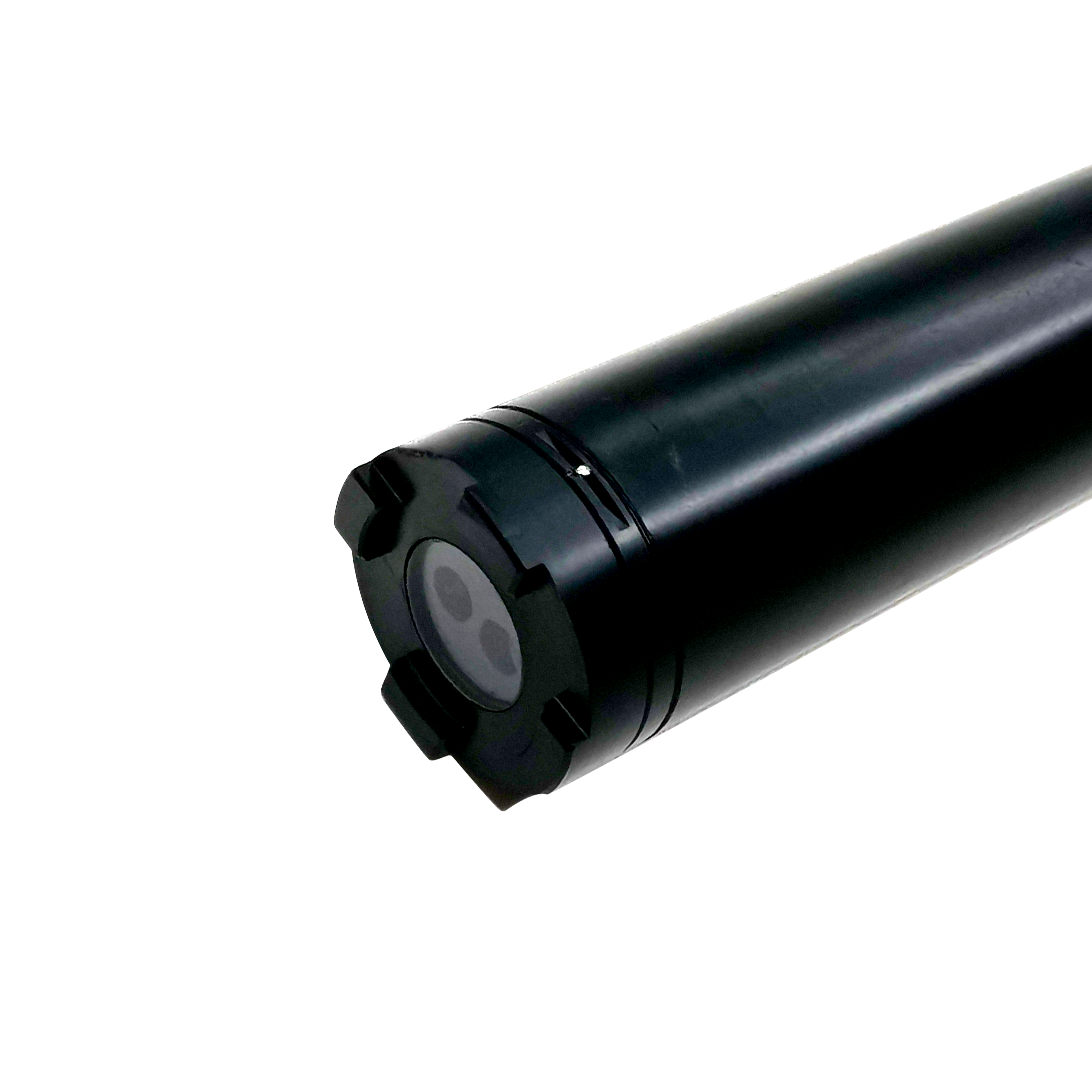

Online Water Oil Sensor

(0 reviews)

1215 USD

(81) Views

(0) Contacts

$1,215.00/ 1 piece

Contact Company

Yantai Chemins Instrument Co., Ltd.

Shandong, China

(814) Views

(15) Contacts

Integrated water Oil sensor the use of soluble oil absorption peaks in spectra and emission peak of the properties, in the spectrum of soluble oil absorption peak emission monochromatic light exposure to water, soluble oil absorb light energy, releasing another emission peak wavelength of monochromatic light, soluble oil emission intensity is proportional to the content of water-soluble oil. The sensor is easy to install and use.

UV LED light source, high stability, long service life, small drift
Ac-driven, effectively filter natural light interference
Support RS-485 (Modbus/RTU protocol)
Convenient, fast, stable, and easy to maintain

                                                            Measuring range
                                                            0～40ppm

                                                            Shell material
                                                            PVC/POM

                                                            Resolution
                                                            0.01ppm

                                                            Accuracy
                                                            ±3%，±0.5℃

                                                            Calibration
                                                            Two-point calibration

                                                            Protection grade
                                                            IP68

                                                            Cable length
                                                            5 meters, other lengths can be customized

                                                            Deepest depth
                                                            Underwater 20 meters

                                                            Storage temperature
                                                            -5～65℃

                                                            Sensor interface
                                                            RS-485(Modbus/RTU)

                                                            Power consumption
                                                            0.2W@12V

                                                            Power information
                                                            12～24VDC ±10%

                                                            Model
                                                            OIL-206A
