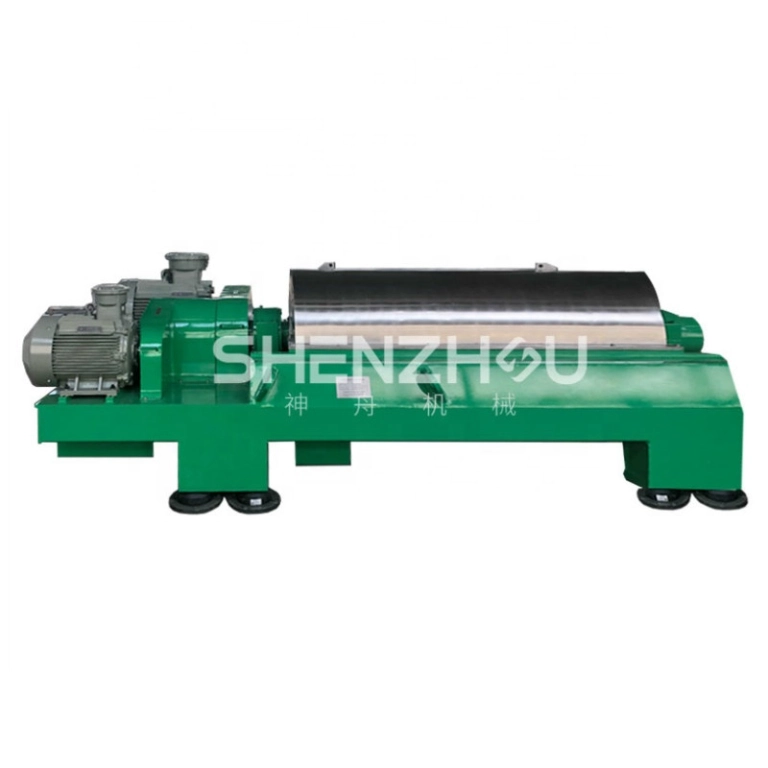

LWS horizontal screw industrial centrifuge tricanter / 3 phase oil decanter centrifuge Centrifuge & Separator

(0 reviews)

Get Price

(128) Views

(0) Contacts

>= 1 units
$26,800.00

Contact Company

Liaoyang Shenzhou Machinery Equipment Co., Ltd.

Liaoning, China

(331) Views

(1) Contacts

The operating principle is as follows:
Separation is used to extract compounds with various mass ratios from a mixed solution.Solid-liquid separation, liquid-liquid separation, and liquid-liquid-solid separation were all possible separation methods.

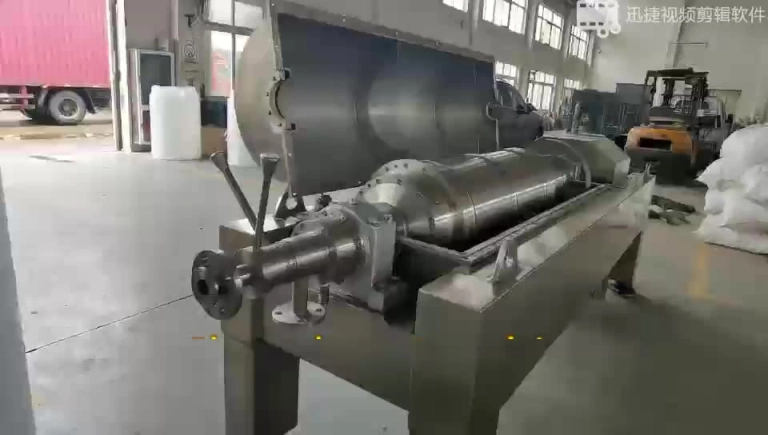

When a mixed fluid enters a centrifuge's revolving bowl via the feed tube, solids having a higher density quickly deposit on the inner wall of the bowl due to centrifugal acceleration.The deposited solids are then forced to the taper end of the bowl by the spiral pusher and discharged from the centrifuge via the residual exit.Meanwhile, the liquid phase with lower density forms a liquid ring layer and discharges from the bowl through the overflow port, the bowl and spiral pusher both run at high speeds simultaneously, and deposited solids on the bowl's wall could be conveyed to the residue outlet by the spiral pusher due to the speed discrepancy.This separation procedure is ongoing.
Separation method

Gravitational separation-liquid discharge-sediment discharge-feeding.
Factors influencing separation The centrifuging factor, the length to diameter ratio of the cavity, and the depth of the fluid pool.

Field command
The rotational speed difference between the spiral pusher and the bowl depth of the liquid pool.

                                                            Place of Origin
                                                            China

                                                            Warranty
                                                            1 Year

                                                            Type
                                                            Centrifuge

                                                            Warranty of core components
                                                            1 Year

                                                            Product Type
                                                            Plant

                                                            Core Components
                                                            PLC, Bearing, Gearbox, Motor

                                                            Brand Name
                                                            Shenzhou

                                                            Voltage
                                                            380V/50HZ,3Phase

                                                            Weight
                                                            1050

                                                            Certification
                                                            GMP/CE

                                                            Dimension(L*W*H)
                                                            Model

                                                            Power
                                                            Model

Fields of application
1. The food

flesh processing plant, an aquatic products processing plant, and edible protein recovery
Extract plant protein from soybeans, oil seeds, and legumes; C Recover brewing leach liquor malt and yeast
Treatment and recovery of wine lees liquid; E Extract of instant coffee and tea;
Palm oil, olive oil, and seed oil clarification; G Fruit, berry, and vegetable juice extraction;
Clarification of grape juice and wine; H Recovery of refined pectin.

2. Protection of the environment.
Drilling mud ,industrial effluent ,waste water of municipal works,fertilizer,organic waste water,paint sludge,plastic particles,gravel washing water,waste water in steel-making ,flue gas desulfurization,sewage sludge treatment of waterworks.
Petrochemical and chemical industries

Kaolin and calcium carbonate processing, bentonite and titanium dioxide synthesis.
Petroleum oil, natural gas, crude oil refining and allied sectors, lubricating oil additives, and waste oil recovery.
Organic chemistry intermediate and final products;
Thermoplastic materials, which include PVC, polypropylene, polystyrene, synthetic rubber, and fiber.
Inorganic chemical industry, which comprises bleach, acid, silicon products, and fertilizers.
Treatment of wasted wash and molasses fermentation residues; G Starch extraction from wheat, corn, cassava, and potato; H Waste liquid recovery and recycling from the aforementioned sectors.

Extracurricular activities
Pharmaceutical intermediates, salts, and manures, for example.

Basic technological characteristics
1. Industrial layout
The overall machine set design adheres to the principle of advanced industrial design, ensuring the machine's stability, functionality, and safety.During operation, it also effectively absorbs shear force from dynamic load.
2. Effectively reduce resonance during bi-rotor rotation
When the centrifuge is in operation, there are no evident first-order and second-order resonance zones within the prescribed speed range, while the entire vibration intensity of the bearing seat is defined as 2mm/s-4mm/s.All of this reduces fatigue damage to components and assembly units caused by high frequency vibration during operation and rapid vibration when shutting down.
3. Completely remove the phenomena of liquid ring stalling.
The phenomenon of liquid ring stalling occurs during the heavy workload boot or shutdown operation of a complete set machine, particularly for LW550 and bigger models. It generates bounce or wild shake, causing extra impact fatigue damage to main bearings, screw bearings, and the inner sections of the rotary bowl.Fortunately, our engineers properly solved this problem.
4. Use of a novel technique in the major component work-blanks
The major component work-blanks are manufactured using centrifugal casting technology and overall mould-making forging technique, which completely avoids dangers such as inter-granular corrosion and relaxation of residual stress release in welding joint.
5. Selection of main bearings
We employ bearings from international first-line companies such as SKF, FAG, and others.
6. Detection of constant temperature
To ensure that actual processing quality fulfills the criteria of specified precision accuracy, all fashioning components and assembly units are detected in constant temperature conditions.
7. The ability to interchange
The physical design of the entire machine, as well as the processing technology used in important positions, ensure that all assembly units and bowls of the same centrifuge type are interchangeable.It not only makes equipment easier to maintain, but it also improves its reliability and safety.
8. Bearing disassembly is simple and safe.
During the disassembly of the bearing from the machine, one layer of oil film is injected into the contact surfaces between the bearing and the work-piece using high pressure.This would essentially minimize friction between separate sections.As a result, when disassembling the bearing, it would save 90% of the pulling force and limit the danger of damage to high-precision parts.
9.The primary bearing lubrication system
For specific product models, there are two types of lubrication systems:
A light oil lubrication
* Oil pump provides continuous power to ensure oil works in a circular fashion; * Jet oil lubrication constantly cleans and lubricates bearings while lowering temperature; * Oil filter system ensures lubricant cleanliness; * Oil pressure energy storage system ensures lubrication pump provides an extra oil supply (pressure no less than 0.4Mpa) for 5-6 minutes when power fails accidentally; * Constant temperature system is available.
B grease lubrication * Use a grease with extreme pressure resistance, oxidation resistance, abrasion resistance, water scour resistance, corrosion resistance, and high temperature resistance. The optional automatic grease system replenishes grease on the main bearing at predetermined hours and quantities.
10. BH device for main bearing (patent design)
At either end of the main bearing, there are two spare safe bearings.When a machine operates properly, it maintains a particular clearance from the bearing inside track to the main axis.When an unforeseen condition happens, the main bearing is damaged, or the circle center deviation causes an amplitude of vibration to reach the required clearance, the safe bearings take over as the main bearing. Meanwhile, if the computer automatic control system detects an abnormal vibration value on a bearing position, it promptly triggers an emergency shutdown and performs a smooth shutdown.This technology guards against machine damage and ensures production safety.
11. GSRL feeding apparatus (powerful design)
The new internal spiral core tube design has achieved the following results.Shorten triangular belt traction time, eliminate swirling flow disorder, and extend separation time without reducing centrifugal acceleration.Meanwhile, the centrifuge's inner working pressure rises and liquid foaming is reduced.
Workshop for production
