3 Phase Fish Oil Water Separator Vegetable Oil Separator PLC Automatic Control Disc Centrifuge

(0 reviews)

Get Price

(76) Views

(0) Contacts

Contact Company

Liaoyang Shenzhou Machinery Equipment Co., Ltd.

Liaoning, China

(352) Views

(1) Contacts

The blood centrifuge series' key features include the capacity to handle high flow rates, high solids content, and high temperature processing. Because of these characteristics, it is perfect for coping with tough circumstances in the animal and fish processing sectors.

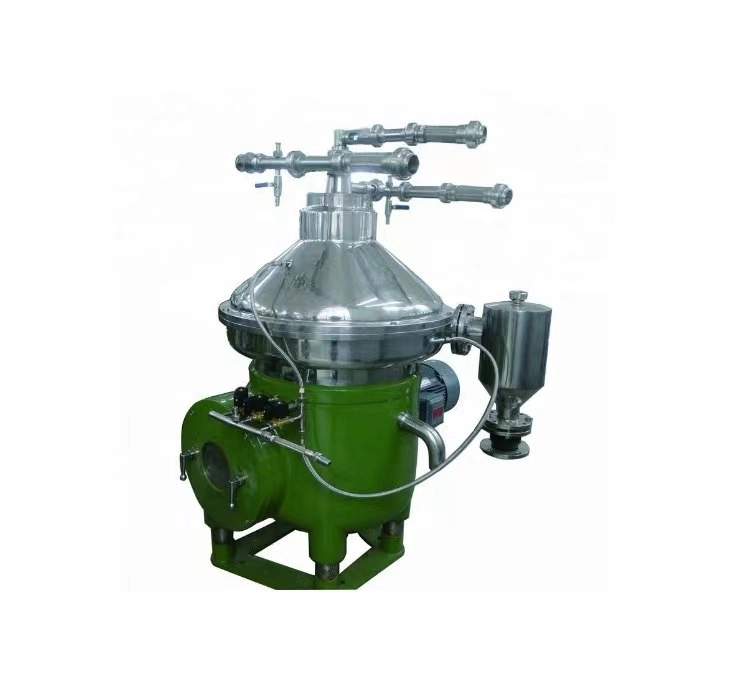

PLC Controlled 3 Phase Fish Oil Water Separator Vegetable Oil Separator Automatic Management
ZHOU SHEN A disc centrifuge is a centrifugal separator that is used to separate precipitated proteins, microbiological broths, hormones, and other biopharma applications. This separation system embodies over 100 years of technical know-how and development and delivers centrifugal machine performance in pilot or medium scale setups. This solid-liquid separator is built to last and can be used as a clarifier, purifier, and concentrator.

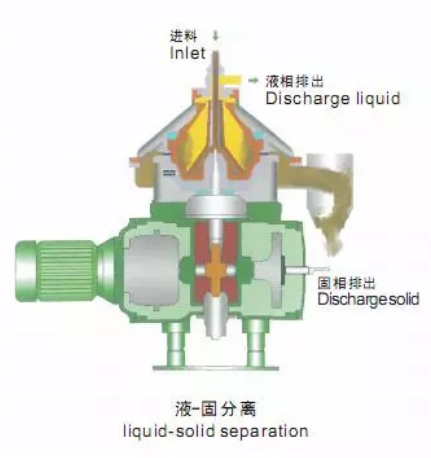

The Operating Principle
How does Disc Separator function?
The disc separator has a vertical design. The drum is situated at the top of the vertical axis, which is powered by a motor and rotates at high speed. In the drum, a series of disc-shaped pieces are piled together with a little gap between them. When the suspension (or emulsion) is pumped into the drum via the feeding tube located in the center of the drum, solid particles (or droplets) settle down to form sediment (or liquid layer) on the disc by centrifuge force, and the sediment slid along the surface of the disc and separated from the disc to accumulate in the largest diameter of the drum. Finally, the separated liquid was evacuated from the exit.
The disc is used to shorten the settling distance of solid particles or droplets, increase the settlement area of the drum, and increase the separator's output capacity. The solids accumulated in the drum are manually removed from the drum once the machine stops, or out of the drum in the case of a dregs machine that does not stop.
The Basic Structure

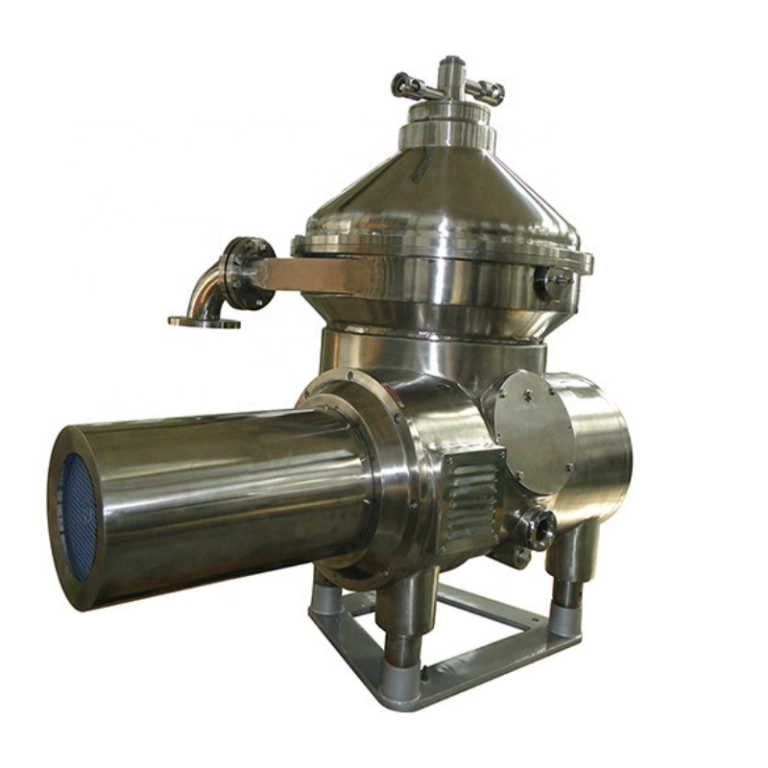

PLC Controlled 3 Phase Fish Oil Water Separator Vegetable Oil Separator Automatic Management
A powerful motor provides power via thermal coupling to drive a high-speed spinning drum around the main axis. And the liquid material is transported into the bottom of the drum by a feeding pipe placed in the upper center, then directed into the porthole below the disc and driven to the drum wall.Solid-liquid-liquid separation requires the following motion under centrifugal force:The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through the heavy liquid concentric pump to be discharged from the outlet.
PLC Automatic Control 3 Phase Fish Oil Water Separator Vegetable Oil Separator
The inner cavity of the drum's double-conical shape can compress the slag and increase its concentration.
Furthermore, certain nozzles are installed around the drum to spray slurry sediment, the number and aperture of which are determined.
Solid-liquid-liquid separation requires the following motion under centrifugal force:The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through the heavy liquid concentric pump to be discharged from the outlet.
PLC Automatic Control 3 Phase Fish Oil Water Separator Vegetable Oil Separator

The inner cavity of the drum's double-conical shape can compress the slag and increase its concentration.
Furthermore, certain nozzles are fixed around the drum to spray slurry sediment, the number and aperture of which are governed by the qualities of the suspension, degree of concentration, and amount of treatment.
To improve slag concentration, a recovery device with this disc separator is attached to the discharged sediment for reuse. The slag's solid concentration can be enhanced by 520 times that of the feeding materials.
The separator has a processing capability of up to 30t/h and is appropriate for suspensions containing solid phrases with diameters of 0.1100 microns and concentrations less than 10% (maximum of 25%).

                                                            Place of Origin
                                                            China

                                                            Power
                                                            Model

                                                            Warranty
                                                            1 Year

                                                            Type
                                                            Separating Plant

                                                            Dimension(L*W*H)
                                                            variable

                                                            Warranty of core components
                                                            1 Year

                                                            Weight
                                                            800

                                                            Certification
                                                            CE BV ISO

                                                            Voltage
                                                            220v/300v/380v/optional

                                                            Core Components
                                                            Bearing, Motor

                                                            Brand Name
                                                            Shenzhou

                                                            Material
                                                            Stainless Sheel

Disc Oil Separator Applications:

Lube treatment
Treatment of oil, water, and solid materials
Drilling slurry treatment
crude oil water removal
Cooling lubricant treatment
Lubricant and hydraulic oil treatment and water removal
Waste emulsion and waste oil treatment
Oil treatment for aging

Characteristics of 3 Phase Fish Oil Water Separator

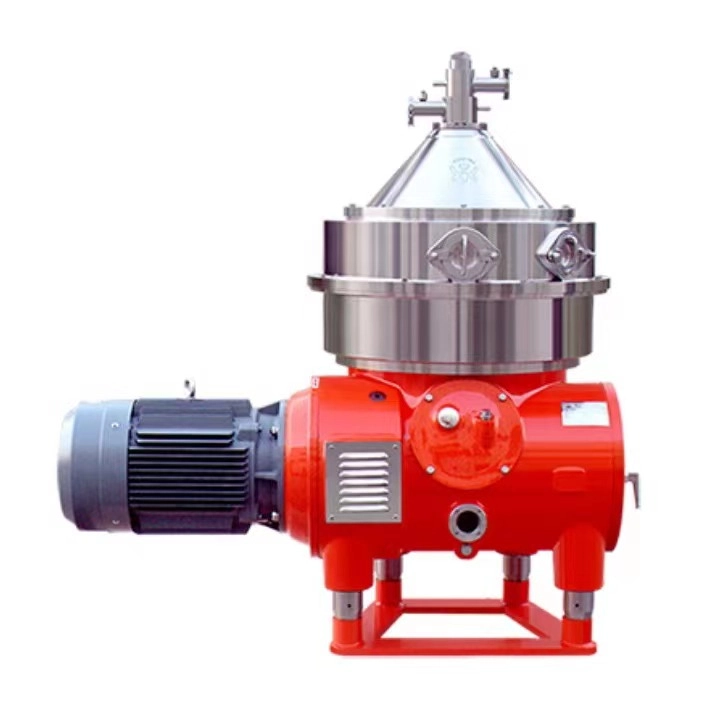

PLC Automatic Control 3 Phase Fish Oil Water Separator Vegetable Oil Separator
High-speed centrifugation to remove oil, grease, and sludge impurities
Strong emulsification ability
Low energy consumption, which saves money
Full automation is possible with a PLC automatic control panel.
Centrifugal separation with no filter media required.
High reliability drive train system backed by over 1,000 units delivered every year.
Bowl design with outstanding separation performance and good responsiveness to discharge loads.
The pilot valve controls the total/partial discharge of solids.
Super partial discharger (option) reduces liquid loss while increasing solid thickening.
Fraction for discharge.
Vibration-proof design ensures long operating life.
