Polypropylene Lamella Tube Settler Clarifier Inclined Plate Settler

(0 reviews)

Get Price

(133) Views

(0) Contacts

Contact Company

Shanghai Shdubhe Environmental Protection Technology Co., Ltd.

Shanghai, China

(561) Views

(0) Contacts

Slant Tube Design: The PSS-PP's slant tube design maximizes sewage flow for improved treatment effectiveness. Better contact between the sewage and the treatment media is made possible by the slant tube design, which facilitates the efficient removal of pollutants.
Polypropylene (PP) Construction: Polypropylene is a strong, chemical-resistant material that is used in the construction of the PSS-PP. Slant tube filler's durability and resistance to the demanding circumstances of sewage treatment are guaranteed by PP.
High Surface Area: The slant tube filler's design aims to give microorganisms in charge of treating sewage a sizable surface area to attach to. Because of its larger surface area, organic matter and pollutants can be removed more effectively and with greater biological activity.
Effective Treatment Performance: Organic pollutants, suspended solids, and nutrients can all be removed from both household and commercial sewage using the PSS-PP. It ensures that environmental regulations are followed and helps to improve the quality of the water.

                                                            Place of Origin
                                                            CHINA

                                                            Brand Name
                                                            DUBHE

                                                            Certification
                                                            ISO

                                                            Model Number
                                                            PSS-50

                                                            Thickness/mm
                                                            0.35-1.00

                                                            Slices/㎡
                                                            20-60

                                                            Weight(kg/㎡)
                                                            14-32

                                                            Specific Surface Area( N2/㎡)
                                                            50-116

                                                            Porosity/%
                                                            85-95%

                                                            Material
                                                            PP

The material Benefit of Lamella Tube Settler Clarifier

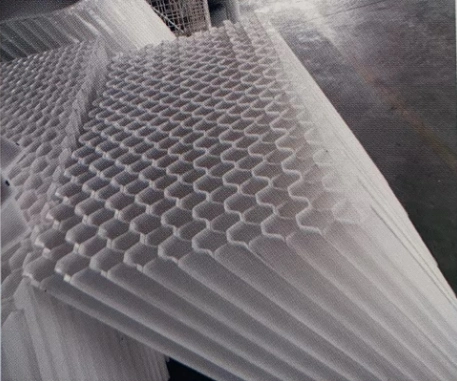

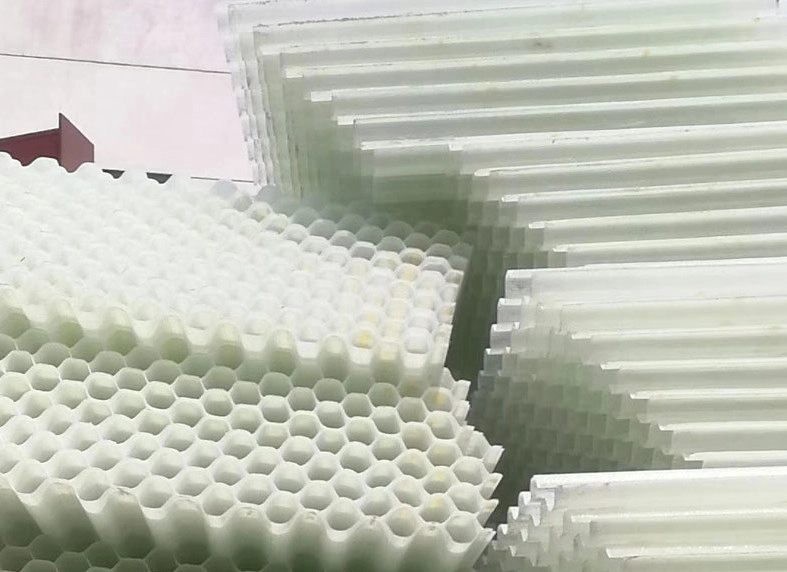

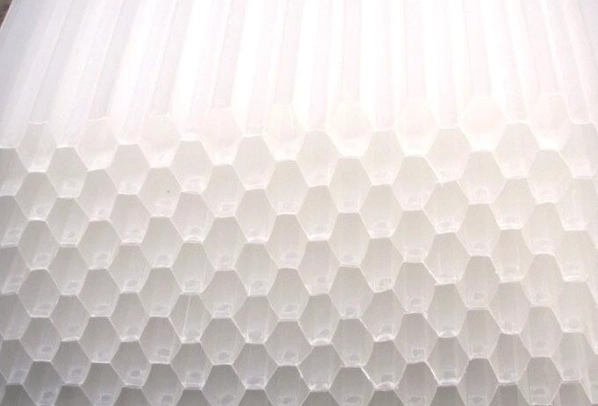

Circuit with a hexagonal honeycomb inclined tube:

The Dragonfly Ethylene Propylene Copolymer is pliable and floats easily.
PVC polystyrene is brittle, easily ages, and mildly toxic;
FRP fiberglass: resistant to both acids and alkalis.

Slanted packaging

Polypropylene ethylene propylene copolymerization: resistant to acid and alkali, aesthetically pleasing;
Polyvinyl chloride, or PVC, is somewhat toxic.
FRP fiberglass: resistant to both acids and alkalis.

The characteristics of Lamella Tube Settler Clarifier
1. Limited hydraulic radius and large wet circumference.
2. There is good laminar flow, and floc flow does not interfere with particle sedimentation.
3. The effective load is calculated at 3-5 tons/m2 · h when the inclined pipe is one meter in length. V0 is kept under control between 2.5 and 3.0 millimeters per second, producing effluent of excellent quality.
4. At the water intake, honeycomb inclined pipes with a length of 2.0–3.0 meters are used. These pipes can safely operate and handle high turbidity with a sediment content of 50–100 kg/m3.
5. By using an inclined tube sedimentation tank, it can process material three to five times faster than a horizontal flow tank, and two to three times faster than an accelerated tank or a pulse tank.
