Lamella Clarifier

AquaEnergy Expo is a global exhibition in the water and energy field which includes a magazine, a Knowledge hub, and a virtual expo.

Menu
Lamella Clarifier
(0 reviews)
Get Price
(1222) Views
(0) Contacts

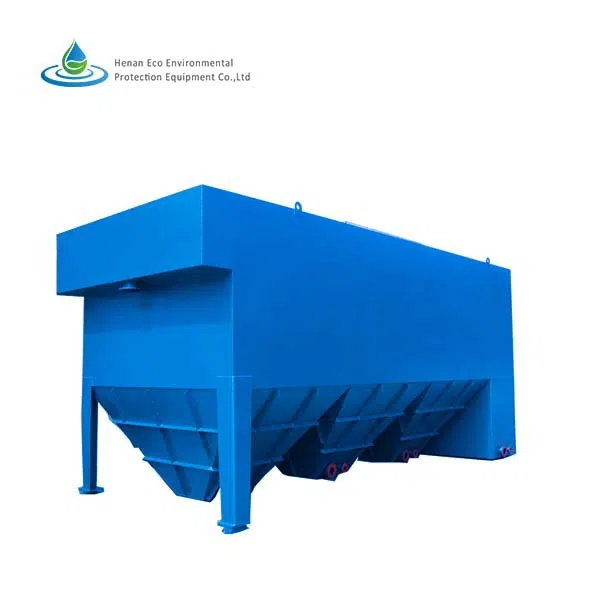

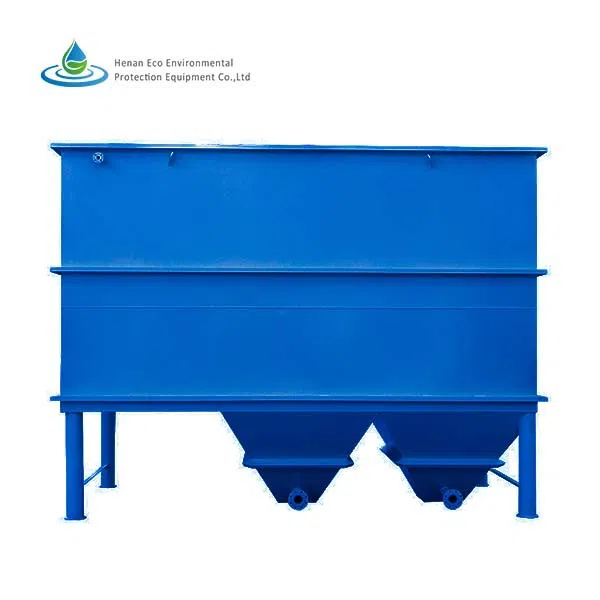

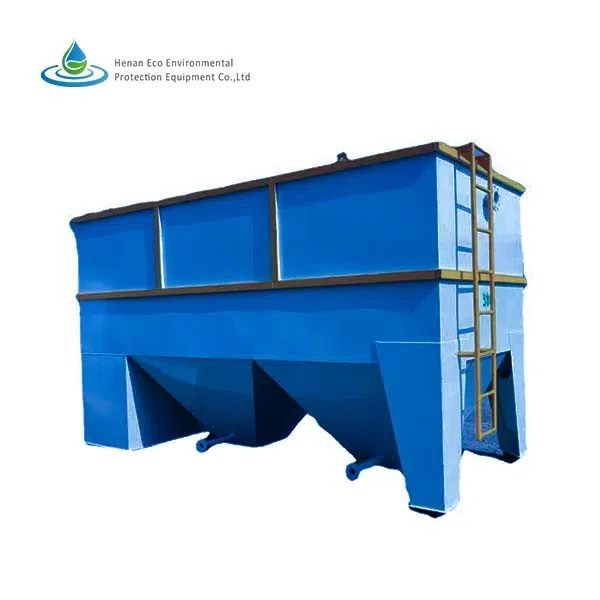

LK-TS Lamella clarifier, also called tube settler, is a type of settler designed to remove particulates from liquids.


Contact Company

Henan Eco Environmental Protection Equipment Co., Ltd
Henan, China
(6232) Views
(8) Contacts

Spacing between inclined tubes no less than 50 mm
Length of tubes about 1.0-1.2 m
The upper layer water depth about 0.5-1.0 m
The depth of bottom buffer layer about 1.0m
Discharge water is collected by multi-hole pipes, and the holes 20mm below water surface to prevent the floating material from being taken away
The flow rate of lamella clarifier depends on different wastewater
The inclined tubes installed at an angle of 60°
Tube clearance about 80 to 100mm.

  • Pre-treatment for effluent entering membrane filters
  • Municipal wastewater treatment processes
  • Treat groundwater
  • Industrial process water
  • Backwash from sand filters.

Laminar flow principle, with a bigger treatment capacity
Less settling distance requires less retention time
Larger available setting area compares to conventional sedimentation tank, the over-flow rate can reach 36m3/(m.h), about 7-10 times higher than conventional sedimentation tank
Smaller footprint.
Lamella clarifiers are ideal for applications where the solids loading is variable and the solids sizing is fine.
They are more common than conventional clarifiers at many industrial sites, due to their smaller footprint.
